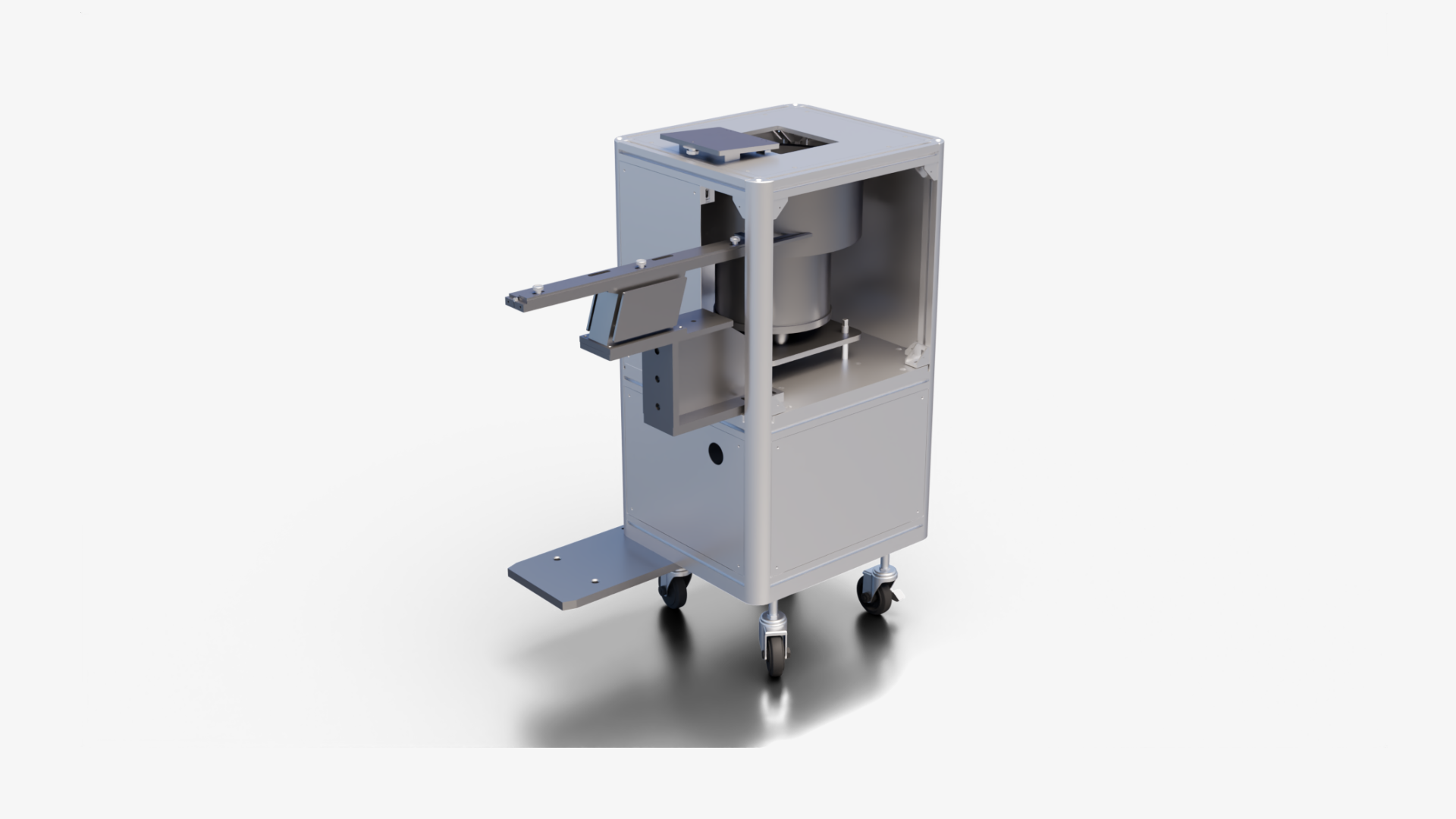

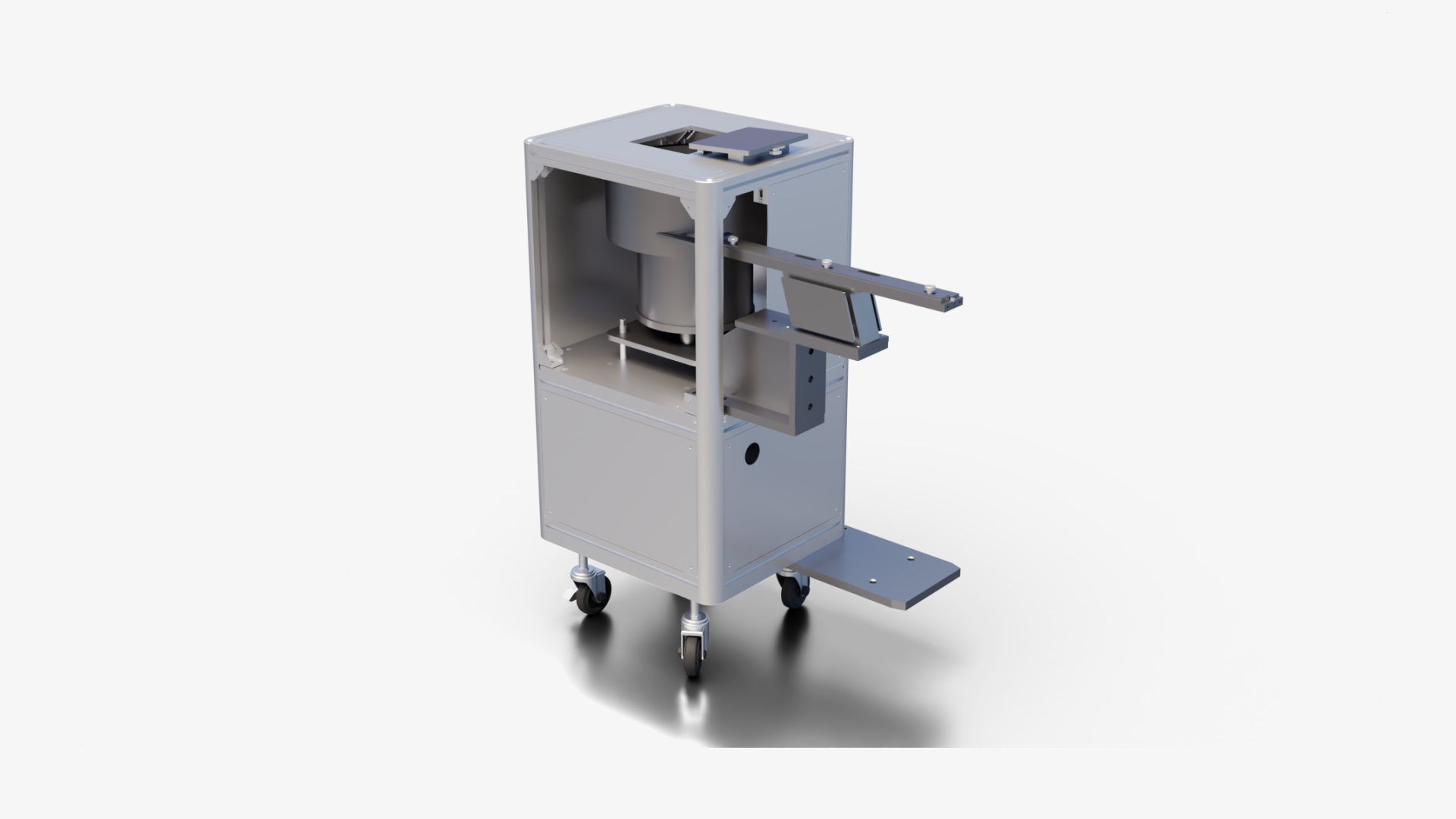

A vibratory bowl feeder that supplies a forming machine is an automated feeding device that uses vibratory mechanics to automatically orient, sort, screen, and transport large quantities of loose, small metal or non‑metal parts. Its core function is to act as an "intelligent front‑end material organizer" for the forming machine (such as a press, riveting machine, or assembly machine), transforming disordered parts into a continuous, consistently oriented, stable material flow, thereby providing reliable material preparation for subsequent precision forming or processing operations.
☆ Achieve fully automated feeding of bulk parts, freeing up labor and improving efficiency
☆ Feature intelligent sorting capability, ensuring processing quality and equipment safety.
☆ Provide highly customized solutions to accommodate complex parts.
Vibratory feeding & preliminary screening:
Disordered parts are dumped into the bowl. Driven by an electromagnet or piezoelectric actuator, the bowl generates high‑frequency, low‑amplitude vibrations, causing the parts to climb upward along a spiral track.
Orientation & rejection on the track:
During the climb, parts pass through a series of specially designed track features (such as grooves, notches, retaining walls, air blow holes, etc.). Parts that match the desired orientation proceed, while those that are incorrectly oriented are rejected and fall back to the bottom of the bowl for re‑circulation.
Orderly output:
After being sorted and oriented, the parts exit the vibratory bowl feeder in a uniform, stable posture, forming a continuous queue.
Transfer & feeding:
The outlet is typically connected to a linear vibratory feeder or a chute, which further transports the orderly parts smoothly to the processing station of the forming machine (e.g., die cavity, gripper, or worktable), completing the feeding cycle.
It completely replaces manual part arrangement, which suffers from extremely low efficiency, poor consistency, high labor intensity, and an inability to match automated production cycle times.
☆ Achieve fully automated feeding of bulk parts, freeing up labor and improving efficiency:
The vibratory bowl feeder serves as the only automated bridge connecting a “bulk parts container” to a “precision machine tool.” Through mechanical and vibratory principles, it performs part orientation, sorting, and feeding 24/7, completely freeing workers from the tedious, repetitive task of manual part arrangement. Production cycle times are no longer limited by human speed, enabling a quantum leap in overall production efficiency.
☆ Feature intelligent sorting capability, ensuring processing quality and equipment safety:
The vibratory bowl feeder is not just a conveying device; it also acts as a primary quality inspection and posture filtering unit. During feeding, it automatically rejects incorrectly oriented parts, overlapped parts, jammed parts, or those with obvious defects (e.g., excessive burrs, shape non‑conformity). This function prevents defective parts from entering the precision die or processing station, thereby avoiding die damage, machine jams, or product scrap. It protects the main equipment and improves overall production quality.
☆ Provide highly customized solutions to accommodate complex parts:
The core sorting track can be custom‑designed and tuned on a one‑to‑one basis according to the specific shape, dimensions, center of gravity, and orientation requirements of the part. This strong non‑standard customization capability enables reliable, fully automatic oriented feeding even for highly irregular small parts (e.g., odd‑form stampings, assemblies with directional requirements)—something that other general‑purpose feeding methods can hardly achieve.
