A tape feeder is a key automated device specifically designed for surface mount technology (SMT) production lines. Its core function is to carry, convey, and precisely position electronic components packaged in standardized tape reels, providing a continuous and reliable material supply to the pick‑up head of the SMT placement machine. It is often referred to as the "ammunition supply system" of the SMT pick‑and‑place machine.
☆ Maximize Overall Equipment Effectiveness (OEE)
☆ Achieve seamless production connection and rapid changeover
☆ Ensure stability and consistency in high‑volume production

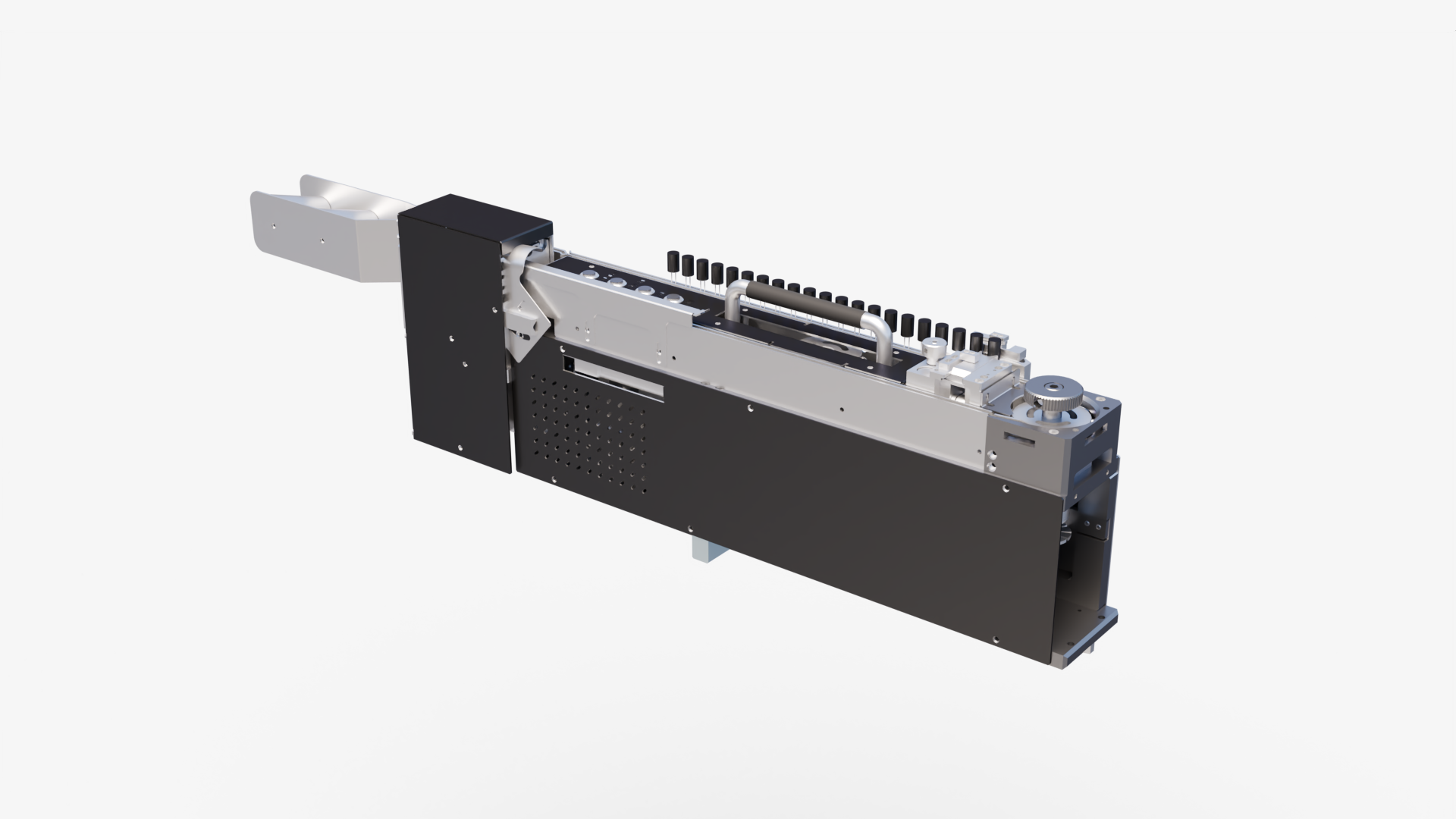

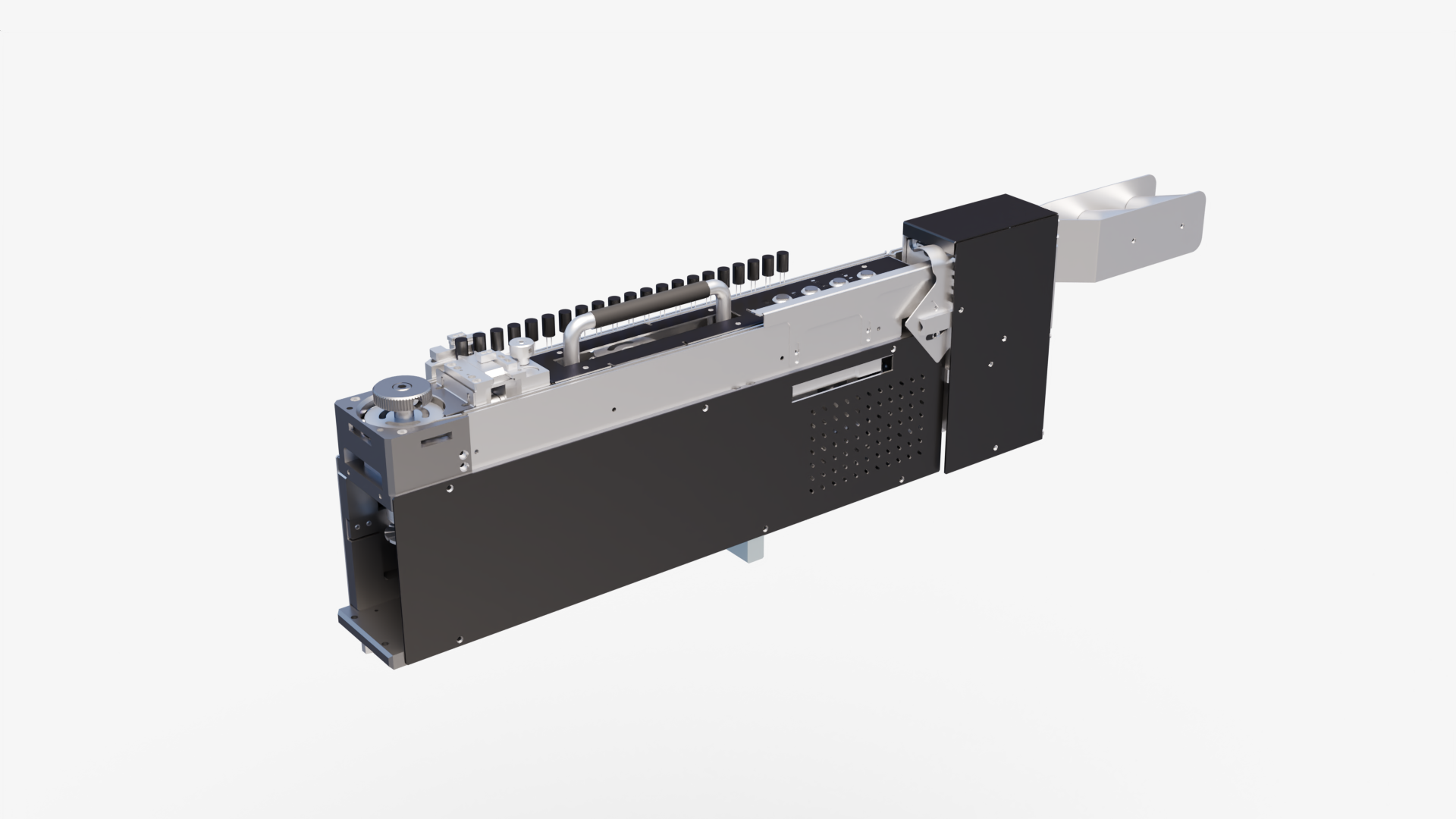

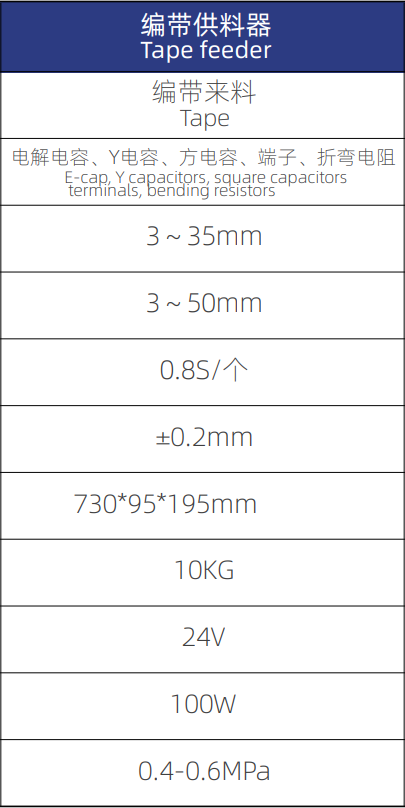

Tape Feeder
The main task of a tape feeder is to deliver components from taped (carrier tape) reels to the designated pick‑up position at precise indexing steps according to the placement machine’s commands.
Basic working process:
Loading: The tape reel is mounted onto the feeder’s reel holder.
Guiding & positioning: The tape passes through the guide mechanism, and its sprocket holes engage with the feeder’s indexing gear.
Step‑by‑step feeding: Upon receiving a signal from the pick‑and‑place machine, the drive mechanism (electric or pneumatic) advances the tape by a fixed pitch (typically equal to the component spacing).
Peeling & exposing: At the pick‑up station, the top cover tape is automatically peeled off or lifted to fully expose the component.
Wait for pickup: The component is accurately positioned at the pick‑up window, waiting for the placement machine’s nozzle to pick it up.
Waste collection: The peeled cover tape is wound onto a take‑up reel.
Application areas:
Almost all electronics manufacturing sectors, such as PCBA (printed circuit board assembly) for smartphones, computers, communication equipment, automotive electronics, smart home devices, medical electronics, etc.
☆ Maximize Overall Equipment Effectiveness (OEE)：The tape feeder is fully designed in accordance with international standards such as EIA‑481, working in close coordination with standardized carrier tapes and cover tapes. Its core transmission mechanism (engagement between the sprocket gear and carrier tape holes) ensures extremely high step accuracy for each tape feed (typically within ±0.1mm error), which is the fundamental prerequisite for achieving high‑speed, high‑precision pick‑up by the placement machine.
☆ Achieve seamless production connection and rapid changeover：As the direct execution unit of the pick‑and‑place machine, the tape feeder responds in real time to high‑speed pulse signals from the placement machine, completing the feeding action within milliseconds and perfectly synchronizing with the movement rhythm of the placement head. Electric feeders can achieve feeding speeds of tens of thousands of steps per hour, making them a key factor in determining the theoretical placement speed (CPH, components per hour) of the entire SMT production line.
☆ Ensure stability and consistency in high‑volume production：Modern high‑end electric feeders integrate sensors and chips, providing self‑diagnostic and communication functions. They can provide real‑time warnings such as “tape end,” “tape feed error,” and “component pick‑up failure,” and can upload component ID, position, consumption, and other data to the MES system. This makes them an important link in achieving smart manufacturing and material traceability.
