Bidirectional DC‑DC module with high‑frequency isolated soft‑switching resonant technology, high efficiency, automatic charge/discharge switching, parallel operation, current sharing, and RS485 communication. Widely used in burn‑in testing for AI power supplies and modular power supplies.
1.1.1 Module Operating Modes
The DC port supports the following operating modes: Power, CV, CC, CP, CR, and BatDischarge.

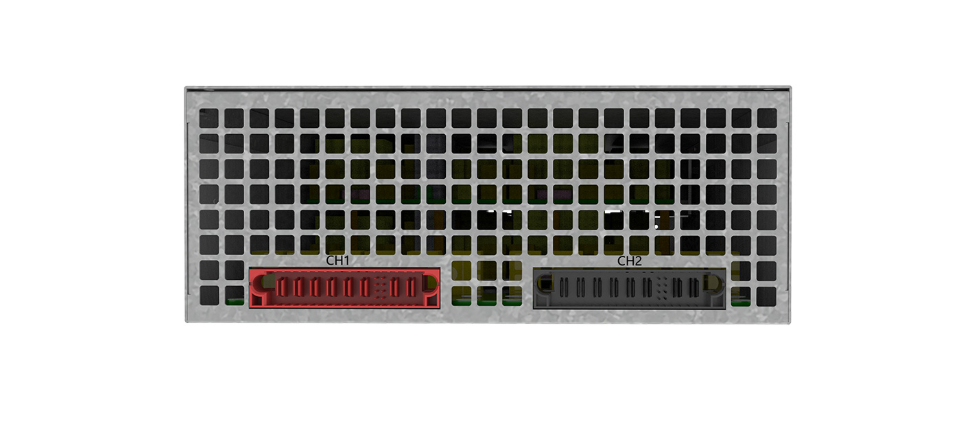

Parallel Connection: Connect DC+ to DC+, and DC- to DC- across modules. Set the operating mode and load current for each of the CH1–CH8 channels independently.
1.1.2 Power Derating Characteristics
The bidirectional module supports multiple operating modes. In all modes, the accuracy of output power control is based on calculations and measurements on the DC side.
