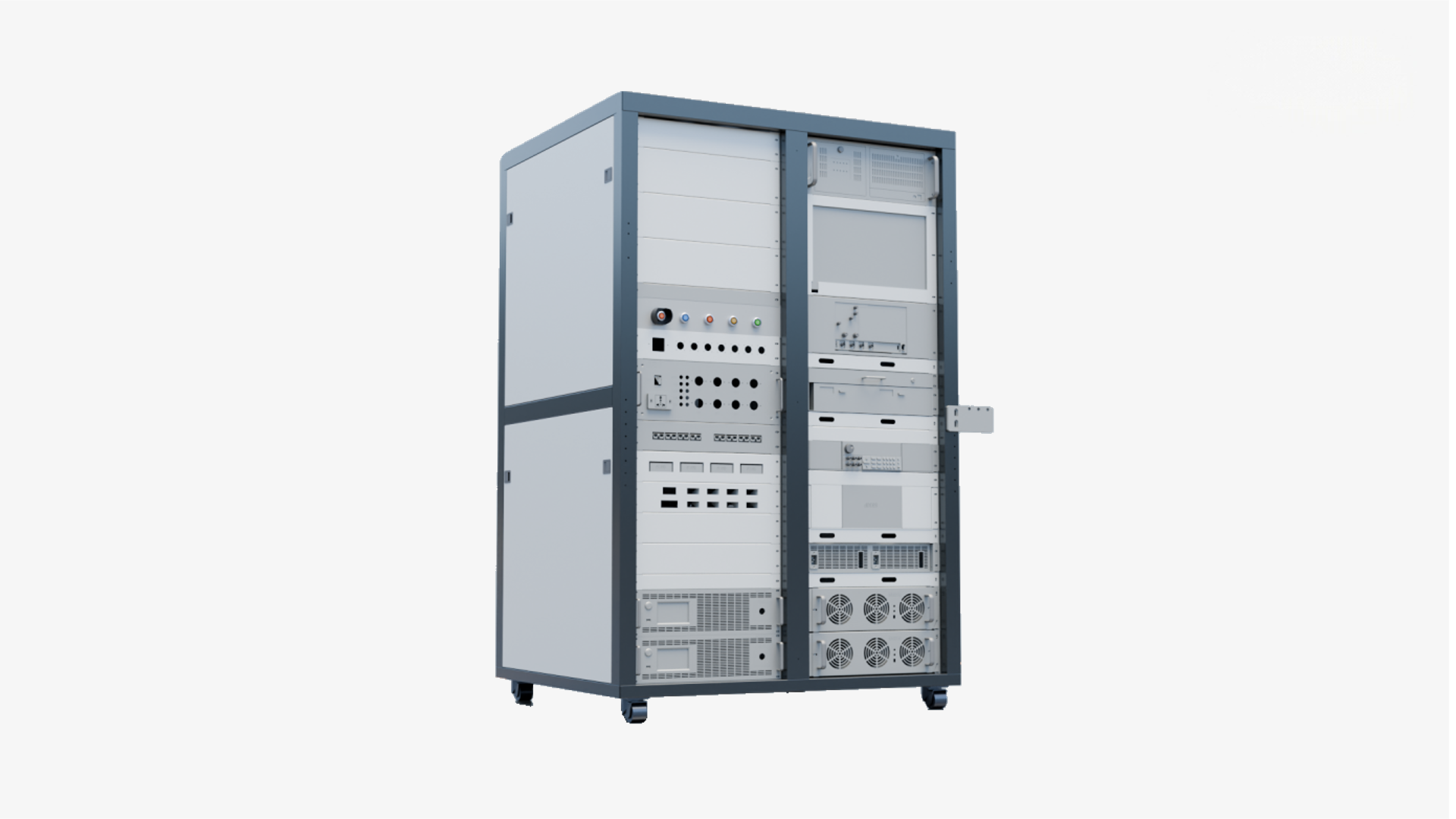

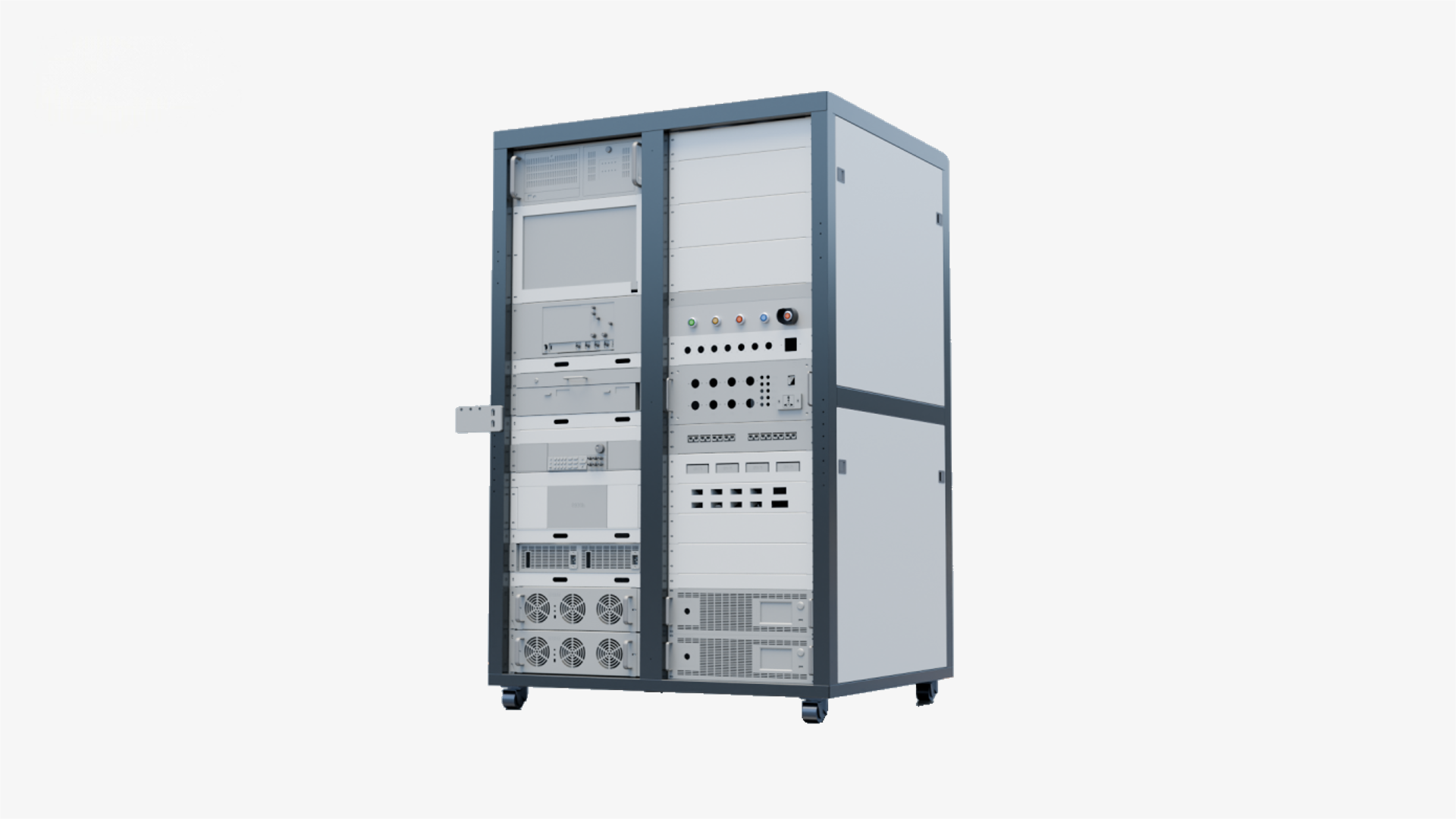

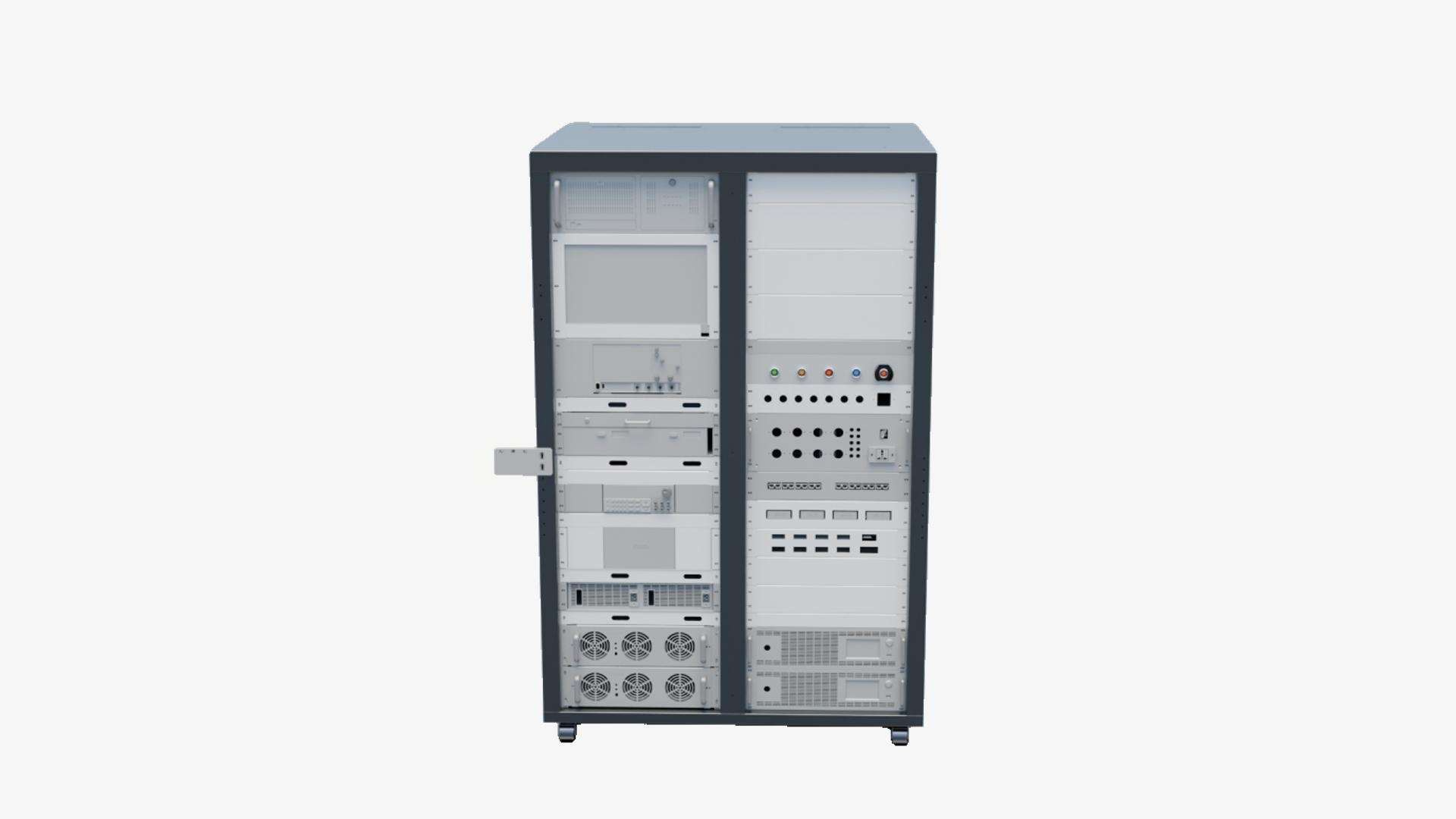

The ATS-9000 is a high-performance automated test platform designed for next-generation data center power supplies and general-purpose power conversion devices. It is suitable for full-parameter verification of AC/DC power supplies, power converters, chargers, server power supplies, and other related products.
The system supports up to 8 UUTs (Units Under Test) for independent parallel testing, significantly improving testing efficiency in both production line and R&D environments. Its modular architecture allows users to select instrument resources (such as power sources, loads, meters, and timing analysis modules) on demand, enabling flexible expansion from single-station to multi-station configurations while balancing cost-effectiveness and future upgradeability.
For data center applications, the ATS-9000 specifically covers performance evaluation of key power nodes including HVDC (High Voltage Direct Current), PCS (Power Conversion System), PSU (server power supplies), IBC (Intermediate Bus Converter), VRM (Voltage Regulator Module), and BBU (Battery Backup Unit). It supports dedicated tests such as dynamic response, efficiency, ripple, timing, and protection characteristics, providing comprehensive system-level verification assurance for high-reliability data center power systems.
☆ Flexible and simple test editing：Built‑in test commands, an easy‑to‑use editing environment, user‑definable test items according to requirements, and the ability to link defined test items through the test program editor.
☆ Universal and effective execution modes：Debug run to verify user‑defined test items and test programs; GO/NG run for pass/fail testing with one‑key operation; online instrument control for synchronous control and monitoring of hardware devices.
☆ Extensive analysis tools：Automatic generation of test data tables, DSO waveforms, and relationship curves; statistical reporting function automatically generates various statistical analysis reports; report data can be printed or saved.
The ATS-9000 is a high-performance automated test platform designed for next-generation data center power supplies and general-purpose power conversion devices. It is suitable for full-parameter verification of AC/DC power supplies, power converters, chargers, server power supplies, and other related products.
The system supports up to 8 UUTs (Units Under Test) for independent parallel testing, significantly improving testing efficiency in both production line and R&D environments. Its modular architecture allows users to select instrument resources (such as power sources, loads, meters, and timing analysis modules) on demand, enabling flexible expansion from single-station to multi-station configurations while balancing cost-effectiveness and future upgradeability.
For data center applications, the ATS-9000 specifically covers performance evaluation of key power nodes including HVDC (High Voltage Direct Current), PCS (Power Conversion System), PSU (server power supplies), IBC (Intermediate Bus Converter), VRM (Voltage Regulator Module), and BBU (Battery Backup Unit). It supports dedicated tests such as dynamic response, efficiency, ripple, timing, and protection characteristics, providing comprehensive system-level verification assurance for high-reliability data center power systems.
☆ Open Software Architecture
Built on a modular and extensible software platform, it supports third-party plugin integration and secondary development, facilitating continuous system evolution and adaptation to diverse industry standards and customized testing requirements.
☆ Test Item and Test Program Editing Environment
Provides independent editors for Test Items and Test Programs, supporting parameterized configuration, logic branching, and conditional jumps, enabling flexible construction of fully automated test sequences ranging from single-step measurements to complex workflows.
☆ Built-in Statistical Analysis and Report Generation
Integrates a CPK (Process Capability Index) calculation engine, supports real-time data acquisition and statistical analysis, and offers customizable report templates to assist with process control and decision-making.
☆ Online Instrument Control and Debugging Tools
Embedded interactive instrument control panels and debugging utilities allow users to send commands online, read back measurement values in real time, perform channel calibration, and troubleshoot faults, significantly reducing system setup and anomaly diagnosis time.
☆ Multi-Bus Instrument Compatibility
Fully supports mainstream communication interfaces including GPIB, RS-232, RS-485, and LAN (LXI), enabling seamless integration with various programmable instruments (sources, loads, meters, oscilloscopes, etc.) for flexible resource expansion and mixed configurations.
☆ Factory Information System Connectivity
Natively supports data exchange with MES (Manufacturing Execution Systems) and Industrial IoT platforms, providing standard interfaces (such as REST API, direct database connection, file exchange, etc.) to enable automated test data upload, batch traceability, and equipment interconnectivity, facilitating the digital transformation of smart factories.
✅HVDC module power supply
✅PSU server power supply
✅IBC (Intermediate Bus Converter)
✅VRM (Voltage Regulator Module)
