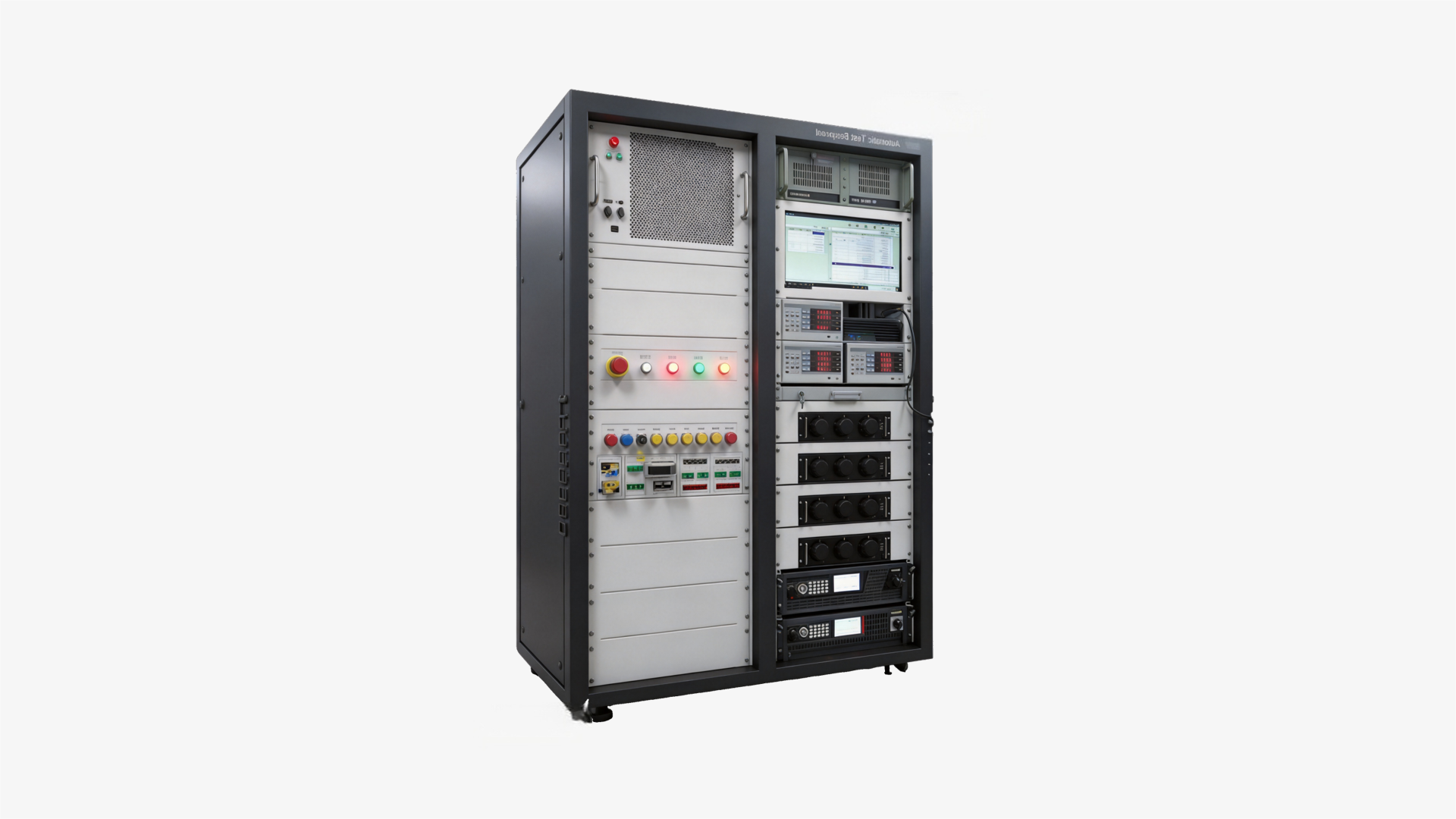

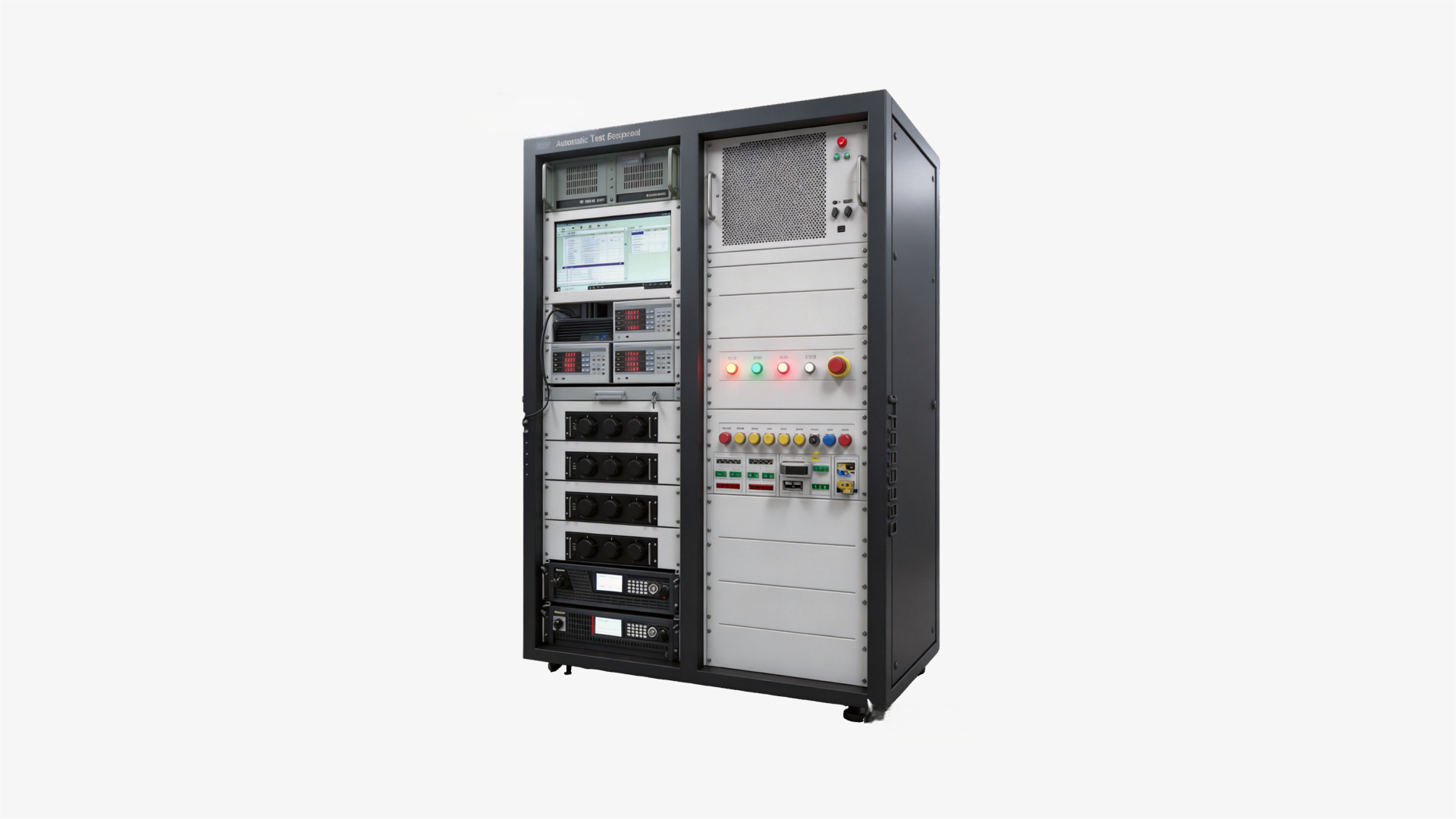

ATS‑2000 – next‑gen PCS test system with open‑architecture integration of DC/AC sources/loads, hipot, temp sensing, CAN, and power quality. Complies with IEEE, UL, EN, GB, industry, and grid standards. Used for R&D, type testing, and QC of PCS and power controllers. Highly integrated, high‑coverage, fully automated for all energy storage scenarios.

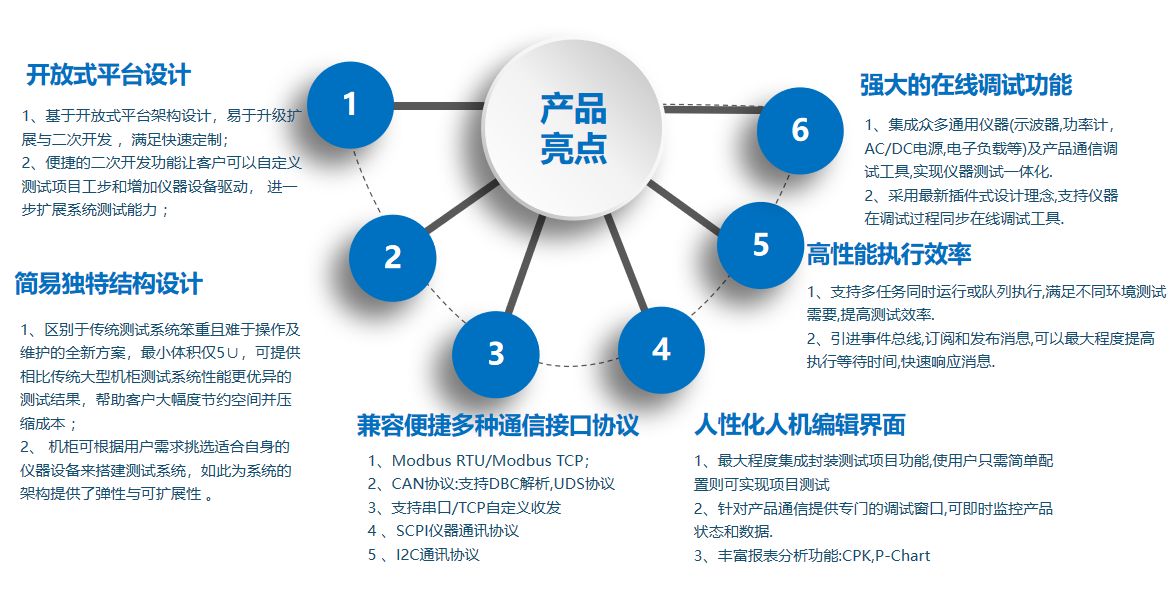

☆ Flexible and simple test editing：Built‑in test commands, an easy‑to‑use editing environment, user‑definable test items according to requirements, and the ability to link defined test items through the test program editor.
☆ Universal and effective execution modes：Debug run to verify user‑defined test items and test programs; GO/NG run for pass/fail testing with one‑key operation; online instrument control for synchronous control and monitoring of hardware devices.
☆ Extensive analysis tools：Automatic generation of test data tables, DSO waveforms, and relationship curves; statistical reporting function automatically generates various statistical analysis reports; report data can be printed or saved.
ATS‑2000 – next‑gen PCS test system with open‑architecture integration of DC/AC sources/loads, hipot, temp sensing, CAN, and power quality. Complies with IEEE, UL, EN, GB, industry, and grid standards. Used for R&D, type testing, and QC of PCS and power controllers. Highly integrated, high‑coverage, fully automated for all energy storage scenarios.
☆ Flexible and simple test editing：Built‑in test commands, an easy‑to‑use editing environment, user‑definable test items according to requirements, and the ability to link defined test items through the test program editor.
☆ Universal and effective execution modes：Debug run to verify user‑defined test items and test programs; GO/NG run for pass/fail testing with one‑key operation; online instrument control for synchronous control and monitoring of hardware devices.
☆ Extensive analysis tools：Automatic generation of test data tables, DSO waveforms, and relationship curves; statistical reporting function automatically generates various statistical analysis reports; report data can be printed or saved.

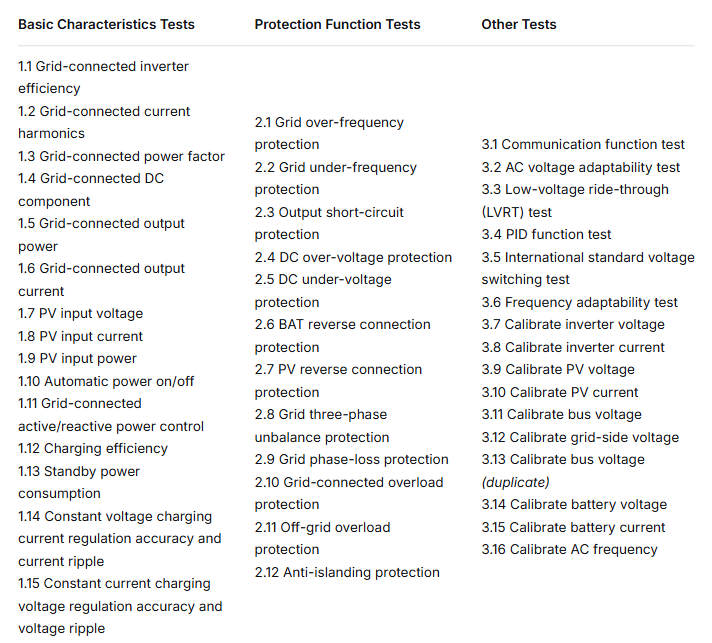

Test Items
✅Power Conversion System (PCS)
Recognized as the "heart" of the energy storage system. It serves as the core interface between the battery system and the grid (or load).
✅Energy Storage Power Control System
The higher‑level "command center" of the storage plant. It is not a single hardware device but an automated system responsible for managing and coordinating all PCS units and other power equipment within the station.
