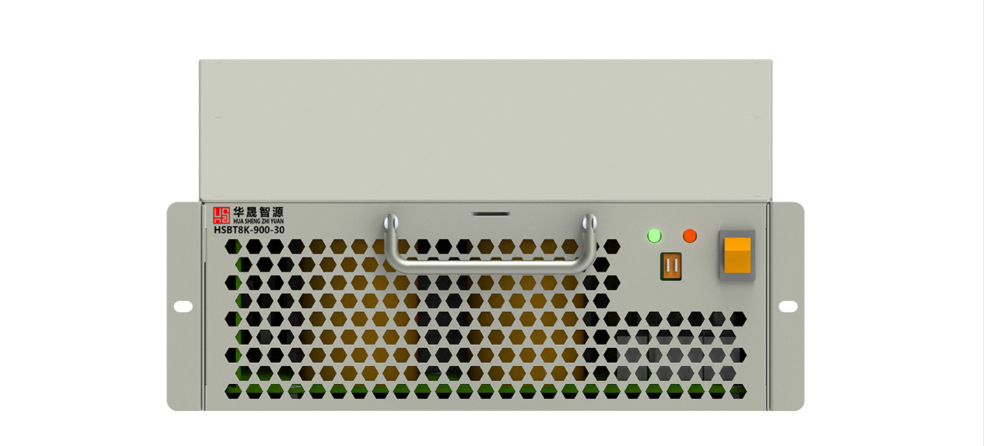

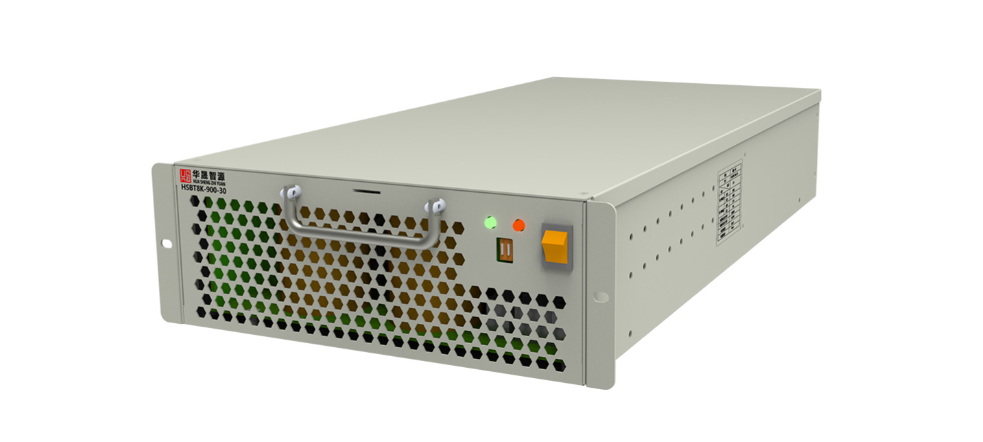

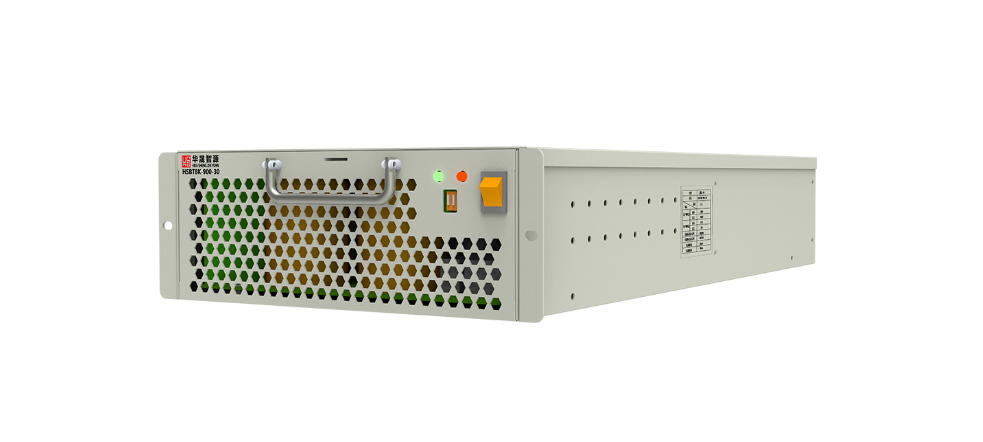

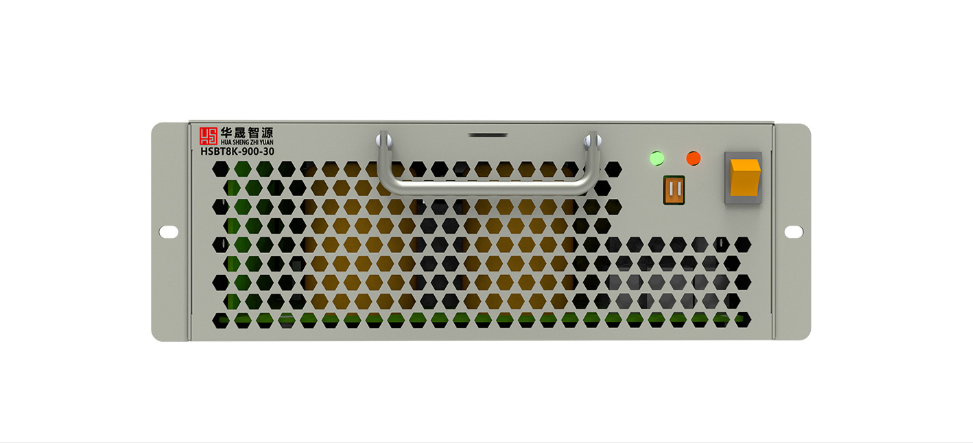

HSBT8K-900-30

This bidirectional module handles AC/DC conversion with DSP control for rock‑solid performance. Its DC/DC stage uses high‑frequency isolated soft‑switching resonant technology for high efficiency, automatic charge/discharge switching, and bidirectional energy flow. It supports parallel operation with current sharing and RS485 for easy system integration. Widely used in battery formation, emergency power, 5G storage, burn‑in, and more – it’s the go‑to choice for bidirectional power applications.

Product Details

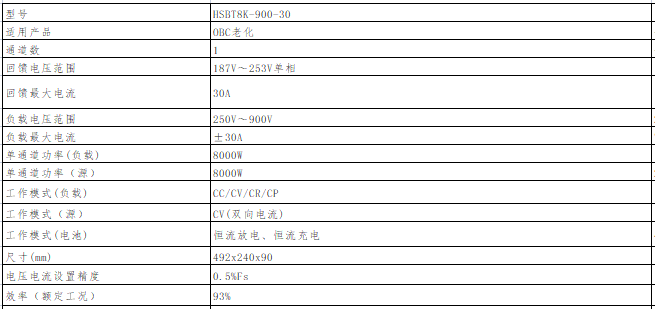

Electrical Specifications

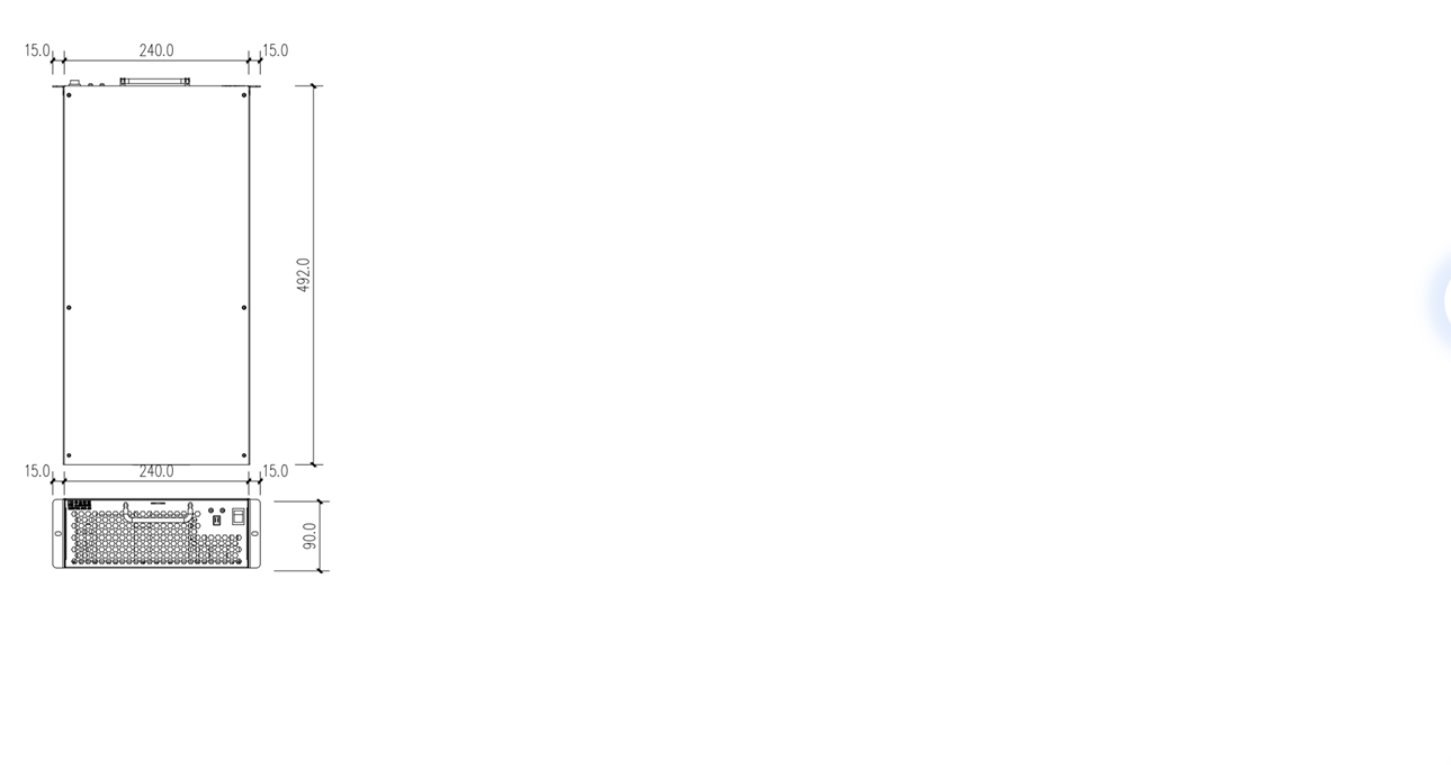

Dimensions

1. Bidirectional AC‑DC conversion with seamless switching between power supply and load modes

2. Soft‑switching technology, achieving conversion efficiency up to 93%

3. Integrated PFC function with high power factor and low THD

4. Plug‑in (drawer‑type) modular structure for easy installation and maintenance

5. Supports CV mode as a source, and CC, CV, CP, CR modes as a load

6. Under CV mode, supports automatic source‑load switching

7. Comprehensive protections: overcurrent, overvoltage, overload, overtemperature, undervoltage, short circuit, fan failure, etc.

8. Fully isolated RS485 and CAN communication interfaces

9. Fully digital control with digital monitoring electronic load capability
