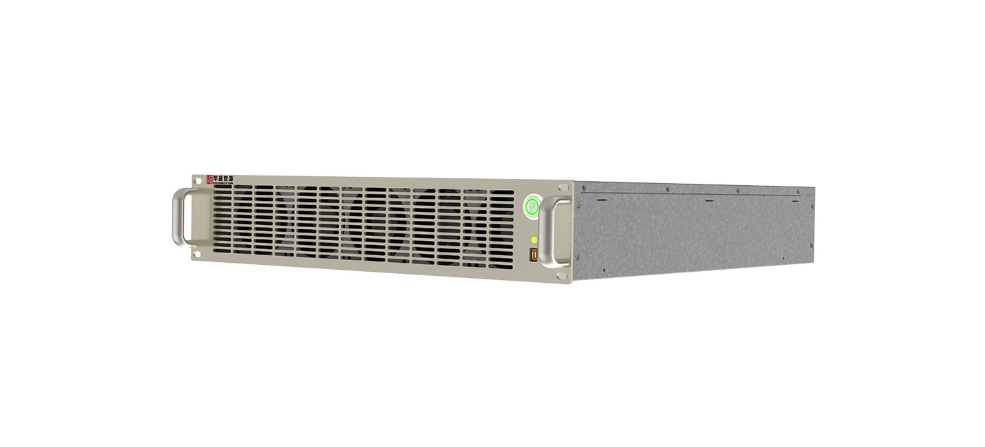

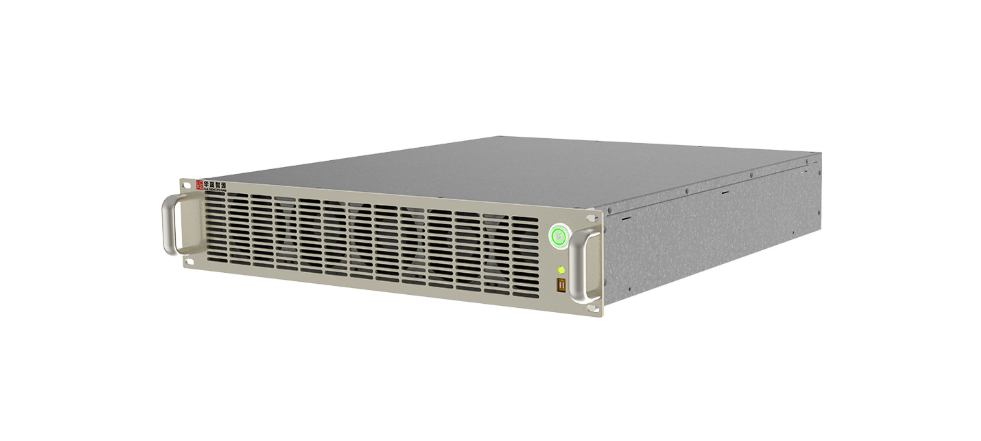

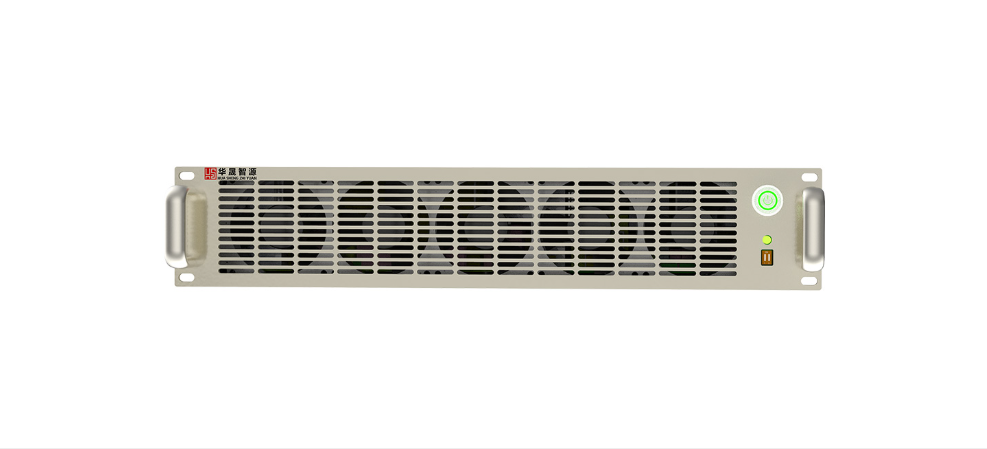

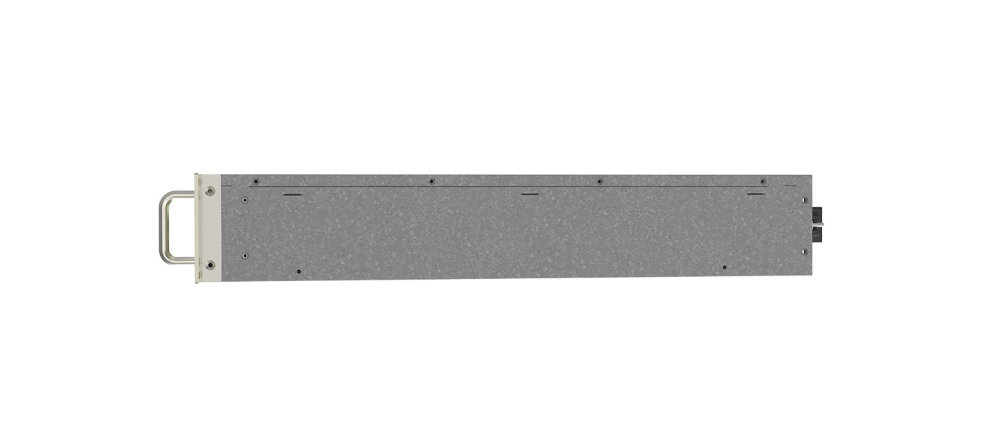

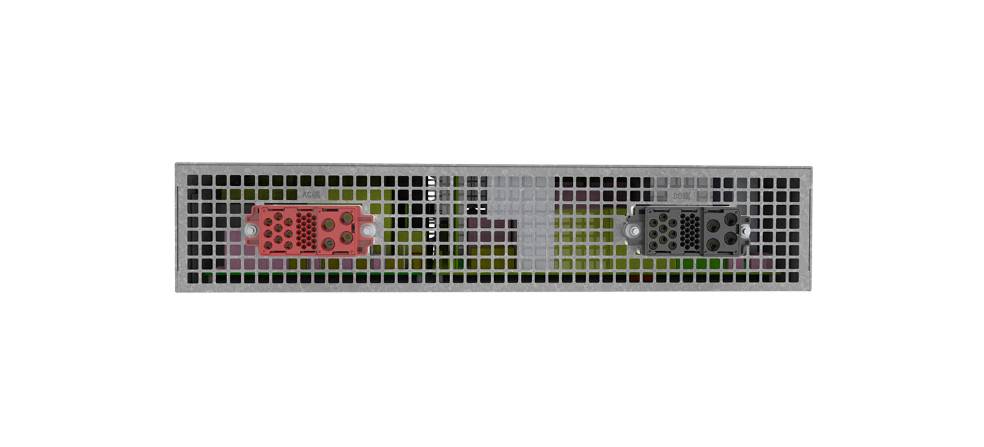

HSBT25K-2K2-60-CB

A wide‑range ultra‑high‑voltage integrated source/load power conversion module featuring seamless bidirectional AC/DC conversion. Advanced digital control offers flexible, user‑friendly operation, while soft‑switching delivers high efficiency, high power density, and isolated design. The module supports auto mode switching, parallel operation with current sharing, and RS485 communication for easy third‑party integration. With multi‑stage AC/DC and DC/DC conversion, it is ideal for burn‑in, energy storage, battery pack testing, PV simulation, and other bidirectional power applications.

Product Details

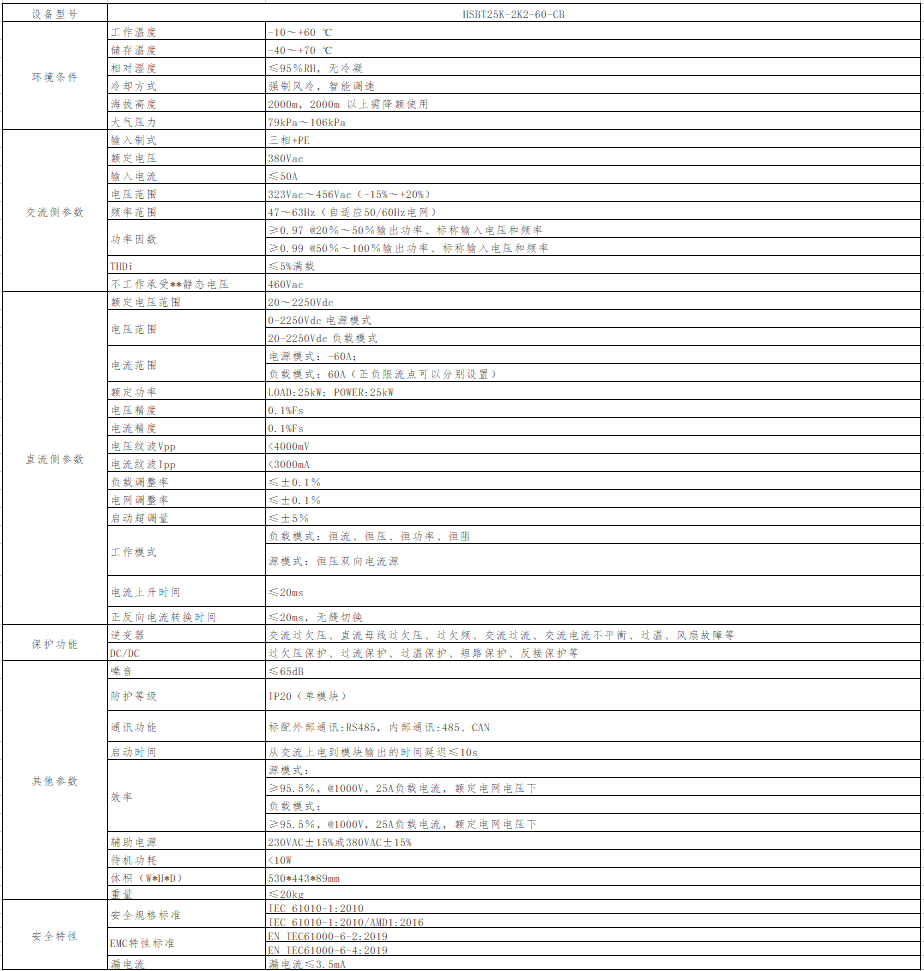

Electrical Specifications

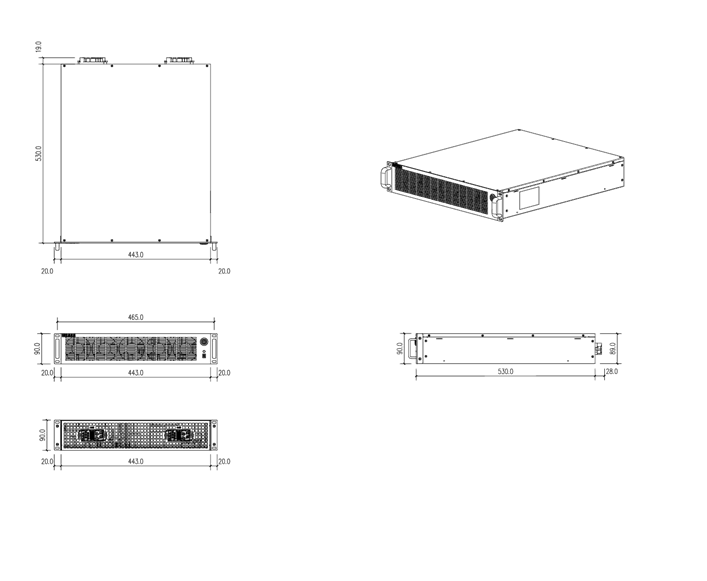

Dimensions

1. Bidirectional AC‑DC conversion with seamless switching between power supply and load modes

2. Soft‑switching technology, achieving conversion efficiency up to 93%

3. Integrated PFC function with high power factor and low THD

4. Plug‑in (drawer‑type) modular structure for easy installation and maintenance

5. Supports CV mode as a source, and CC, CV, CP, CR modes as a load

6. Under CV mode, supports automatic source‑load switching

7. Comprehensive protections: overcurrent, overvoltage, overload, overtemperature, undervoltage, short circuit, fan failure, etc.

8. Fully isolated RS485 and CAN communication interfaces

9. Fully digital control with digital monitoring electronic load capability
