HSAA550-220-5A5-6

AC‑AC regenerative electronic load for burn‑in testing of AC‑output power supplies. Multi‑stage conversion, high reliability, programmable, automatic, high precision, fast response, with energy feedback to the grid. Supports parallel operation and RS485. Widely used for portable power stations, inverters, and other AC‑to‑AC conversion products.

Product Details

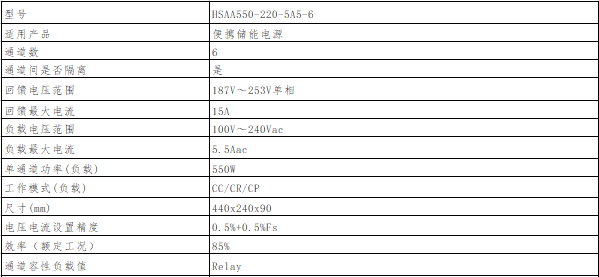

Electrical Specifications

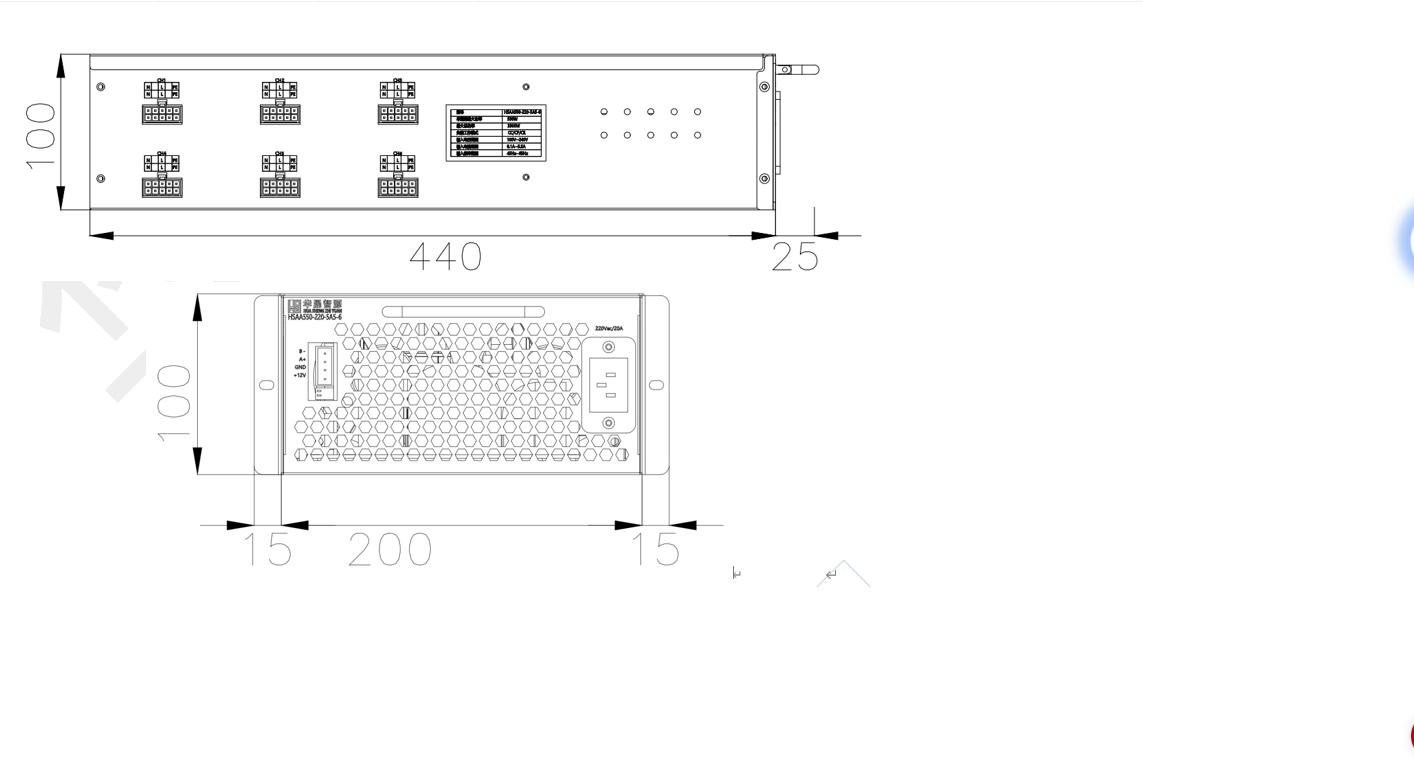

Dimensions

1.Independent channel control
2.Efficiency up to 89%
3.Supports Von setting
4.CC, CR, and CV load modes
5.High load accuracy
6.Low output ripple
7.Parallel operation supported in all load modes
8.RS485 communication
9.Protection functions: overcurrent, overvoltage, input over‑/under‑voltage
