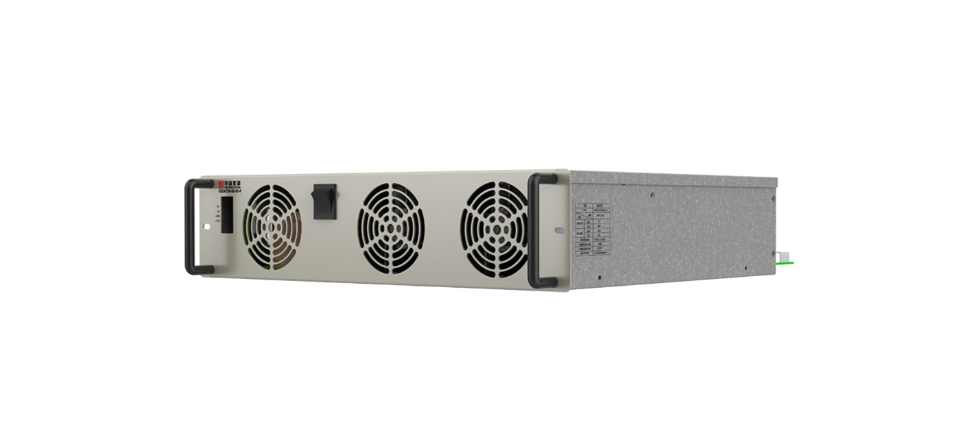

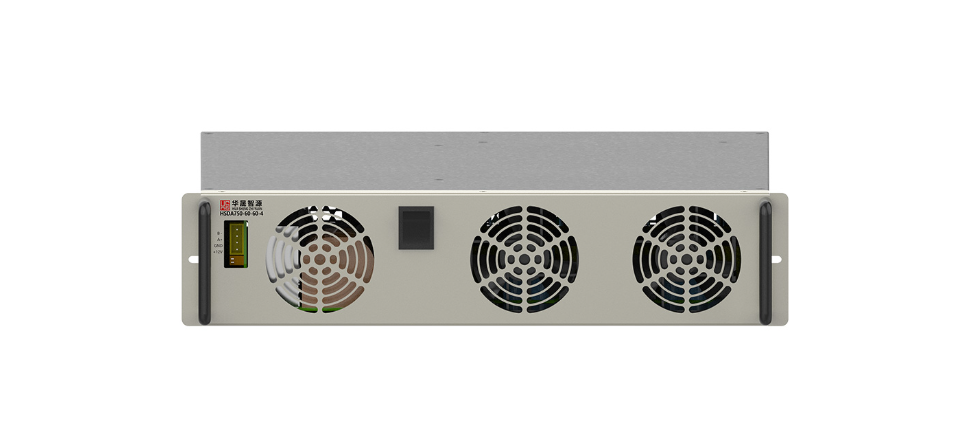

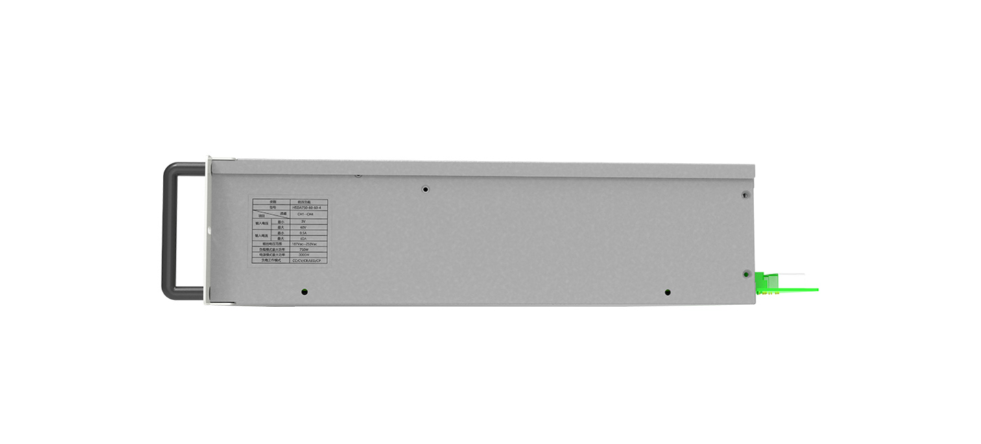

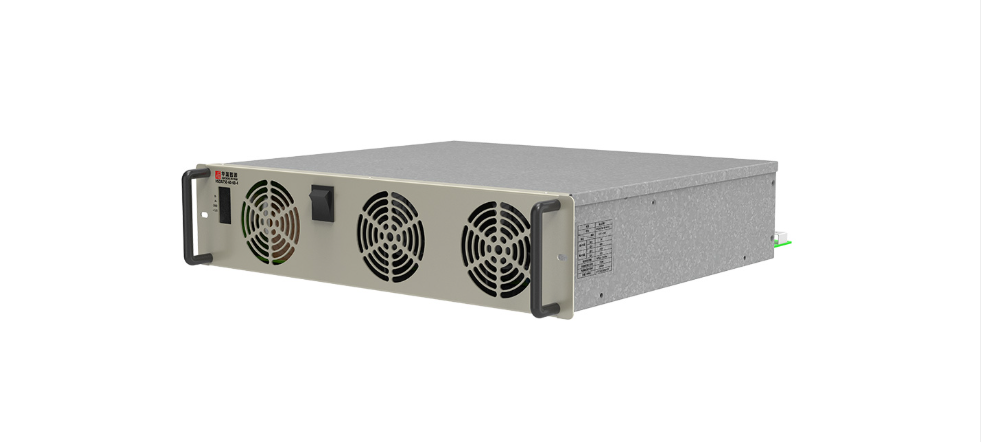

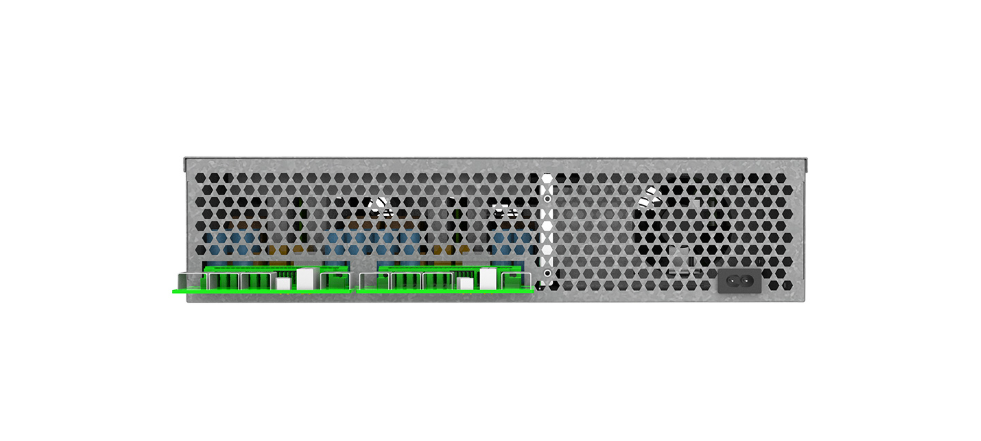

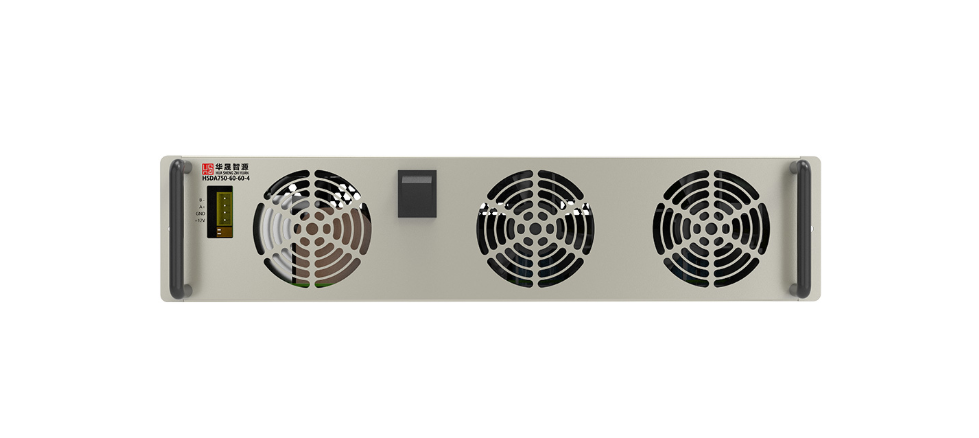

DC‑AC regenerative electronic load for burn‑in testing of DC‑output power supplies. Multi‑stage conversion architecture, high reliability, programmable, automatic operation, high precision, fast dynamic response, with energy feedback to the grid. Supports parallel operation and RS485 communication. Widely used for server PSUs, PC PSUs, adapters, LED drivers, chargers, and more.
1.Independent channel control
2.Efficiency up to 85%
3.Supports Von setting
4.CC, CV, CR, CP load modes
5.Output EMC filtering
6.Grid harmonic correction
7.Parallel operation supported in all load modes

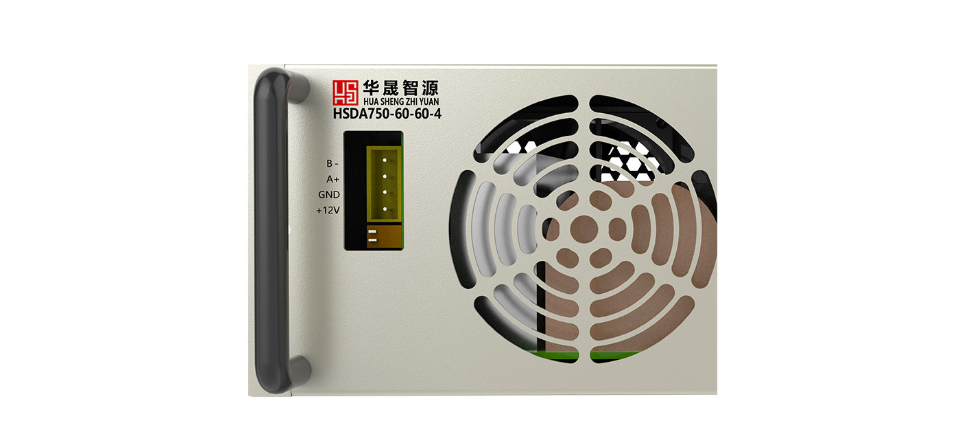

8.RS485 communication
9.Power factor correction (PFC)
10.Input‑output electrical isolation
11.Wide AC voltage output: 187–253 VAC
12.DD+DA combined all‑in‑one design
13.High‑frequency soft‑switching technology – compact size, high efficiency
14.Compliant with safety standards for information technology equipment
15.Protection functions: overcurrent, overvoltage, input over‑/under‑voltage, etc.
