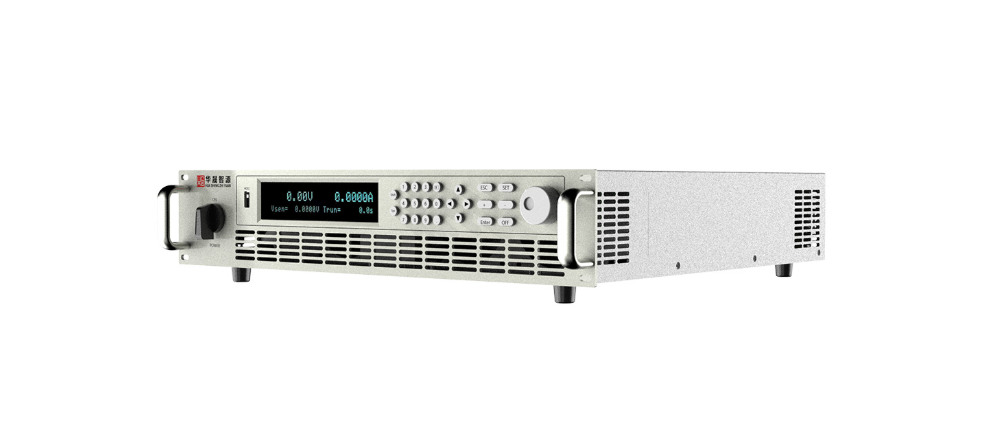

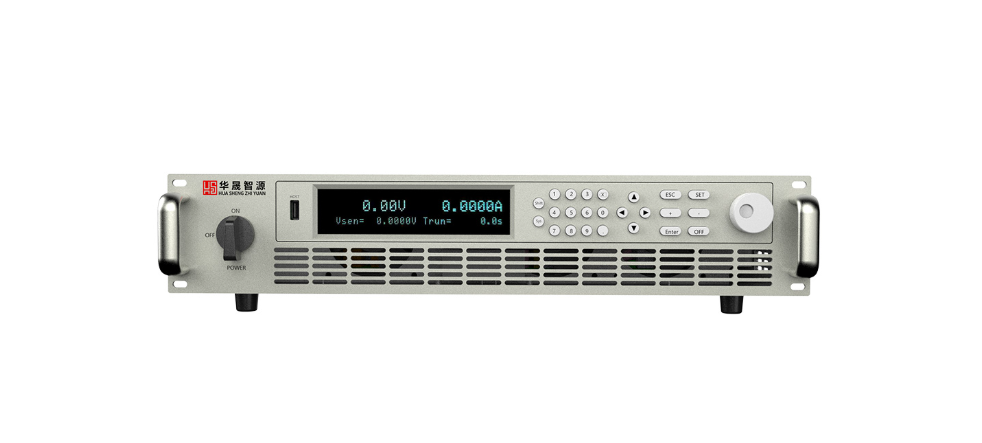

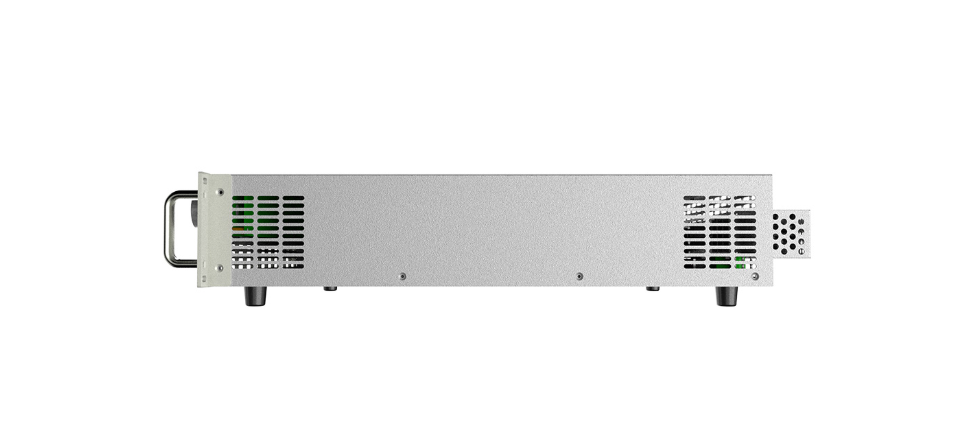

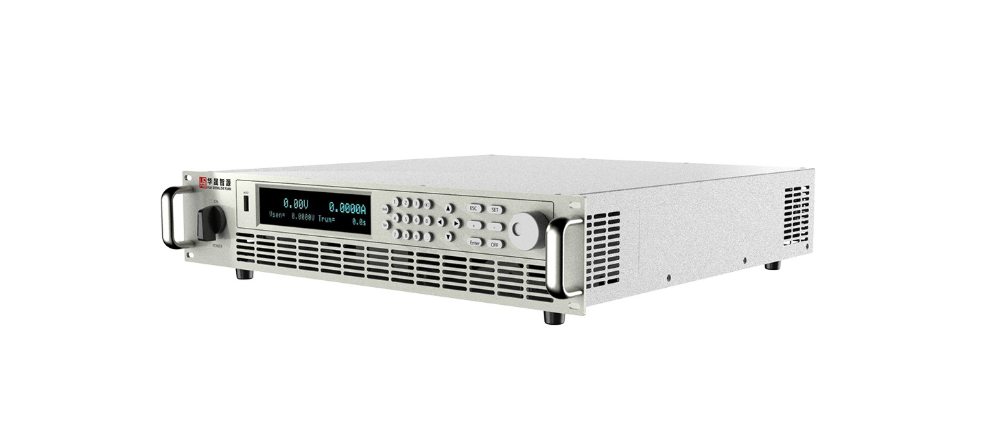

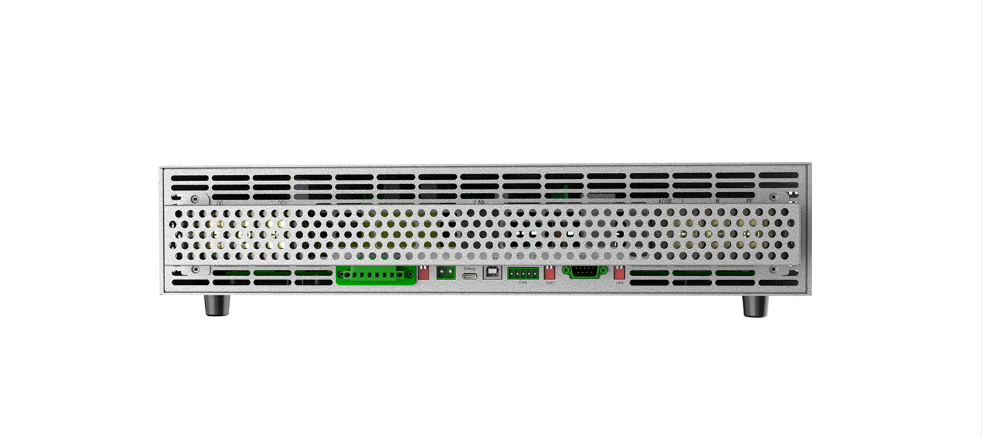

The DC integrated source‑load instrument features seamless source‑load switching and dual‑quadrant operation for versatile testing. With high power density, wide range, 0.05% accuracy, fast dynamic response, and list mode, it handles complex sequences with ease. Advanced capabilities include battery simulation and regenerative energy feedback (>90% efficiency). Standard LAN/USB/GPIB interfaces and touchscreen GUI enable easy integration and operation, while comprehensive protections ensure safety – making it an ideal choice for R&D and production in power electronics, EVs, and aerospace.
