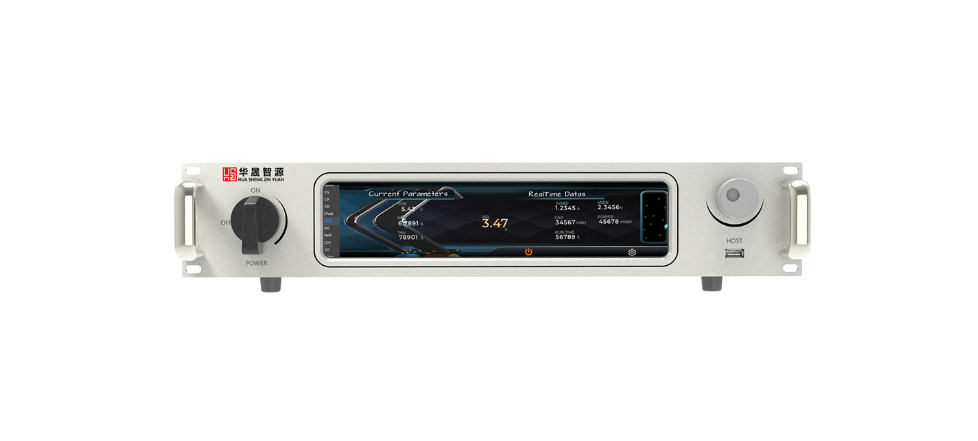

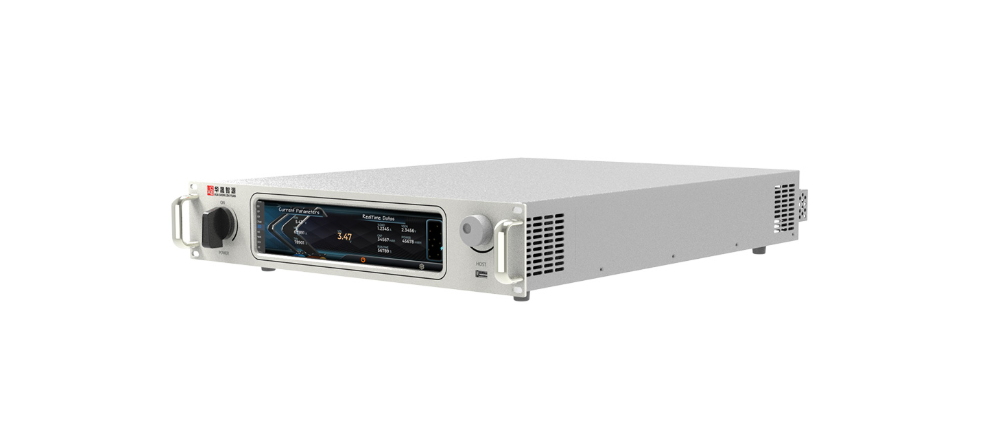

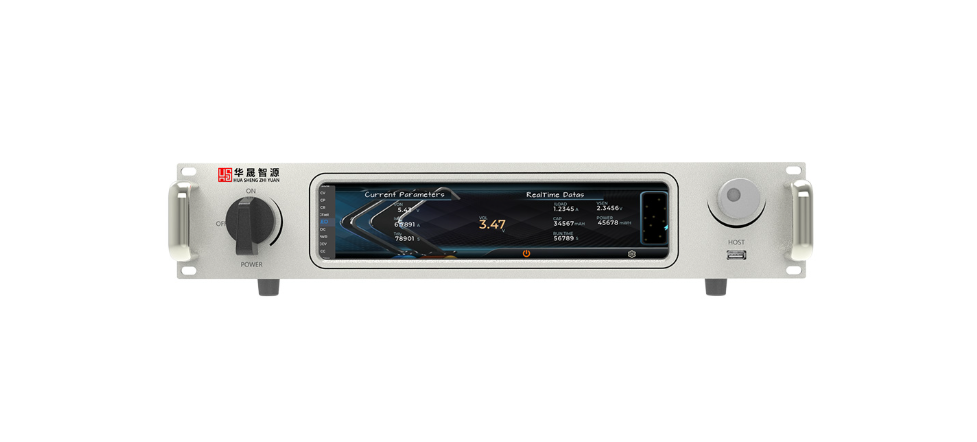

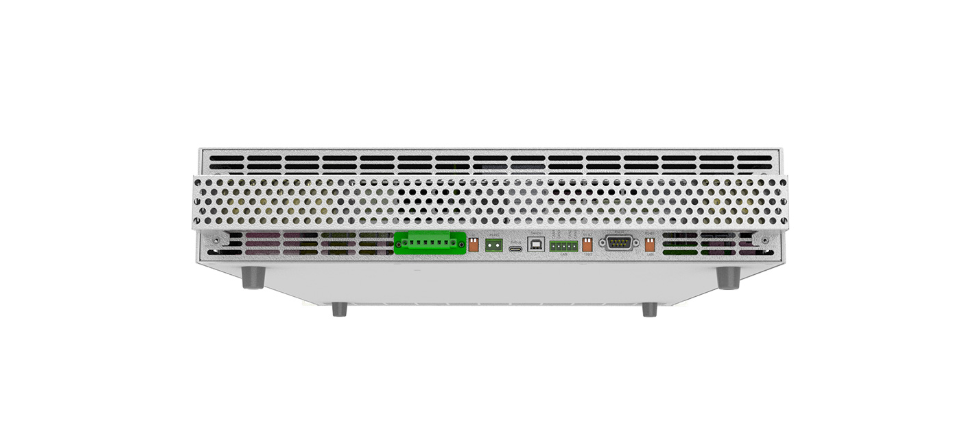

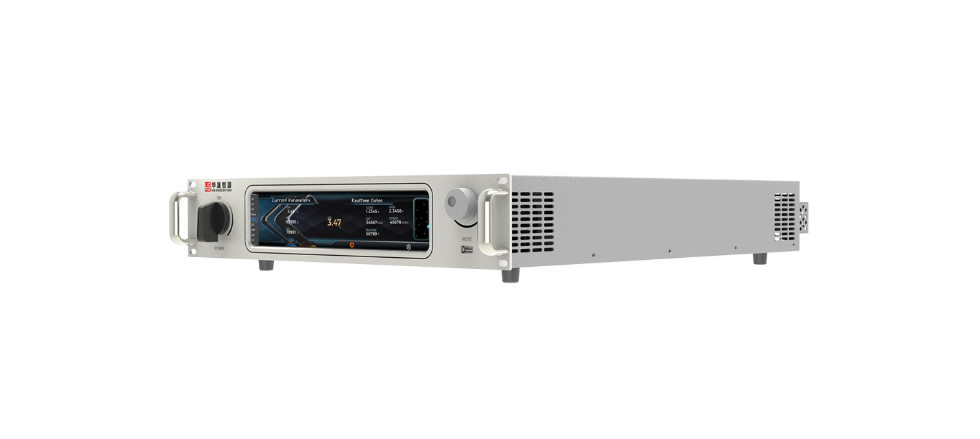

The high‑voltage DC integrated source‑load instrument combines a 1700V programmable power supply and electronic load in one unit. Designed to cover 1500V systems with ample headroom, it supports next‑gen 800V EV technologies. It offers targeted voltage matching, simplified wiring, energy feedback for cost savings, and comprehensive safety protections – an essential tool for R&D in PV, storage, and EV powertrains.
The 1700V high‑voltage DC integrated source‑load instrument is the "perfect match" for 1500V systems, offering ample voltage headroom and comprehensive safety with enhanced insulation, interlock, and hardware protection. It features seamless bidirectional energy flow with regenerative feedback (>90% efficiency) for green, cost‑effective testing, plus high precision and fast dynamic response.
1.Key applications include:
2.PV and storage: 1500V inverter/PCS MPPT efficiency, charge/discharge cycling, grid fault simulation.
3.EV e‑drive: 800V motor controller and ultra‑fast charger testing.
4.DC power systems: Data centre HVDC and industrial microgrids.
5.Components: SiC/GaN device characterisation, capacitor/relay/circuit breaker testing.
6.Essential for R&D and validation in high‑voltage new energy and industrial sectors.
