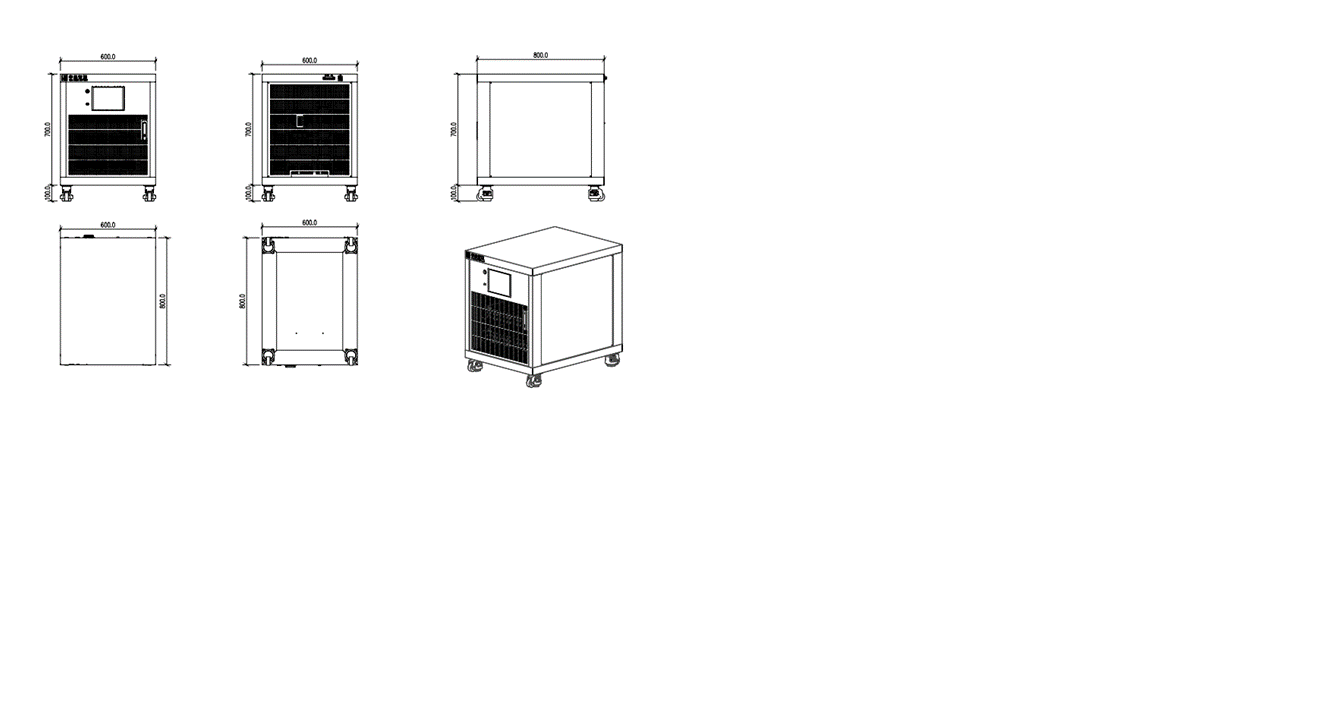

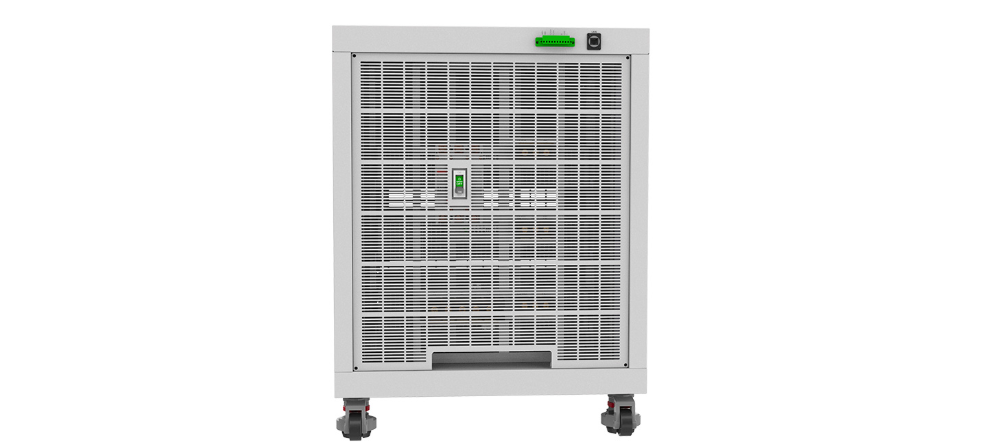

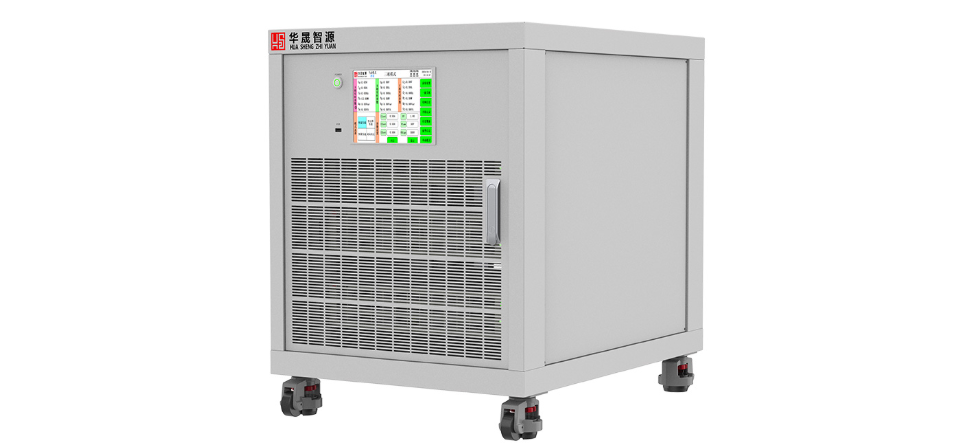

Key Features of the Integrated Source‑Load Cabinet: Integrated, Programmable, High‑Power, and Intelligent.
1.High Integration (All‑in‑One): Configurable with up to 3 HSBA11K series integrated source‑load modules, delivering 33kW of power, with built‑in measurement, control, cooling, and protection systems.
2.Space Saving: Eliminates the need for separate large power supplies and loads, as well as the associated interconnection cabling.

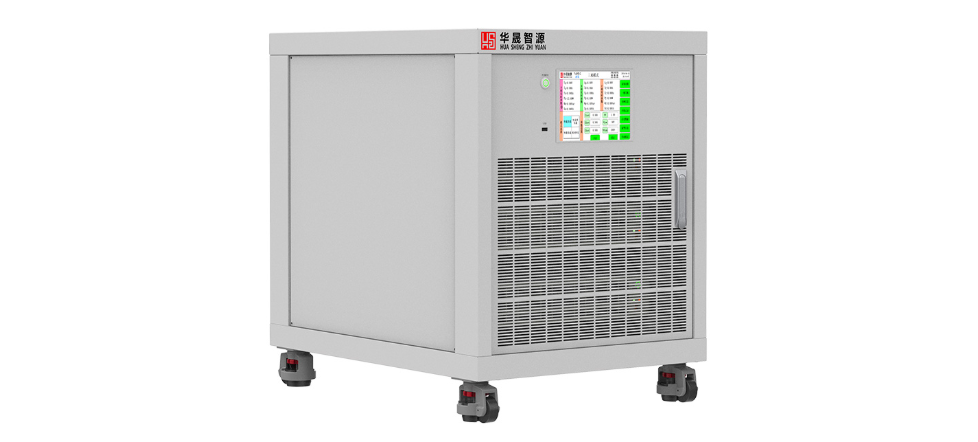

3.Easy Mobility: Typically designed as a wheeled cabinet, allowing easy relocation between machine rooms, laboratories, or production lines – enabling "one cabinet, multiple uses."

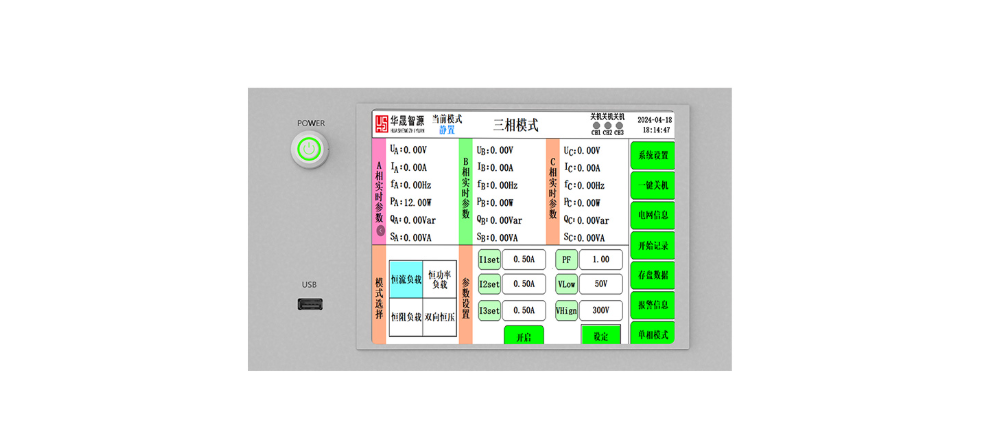

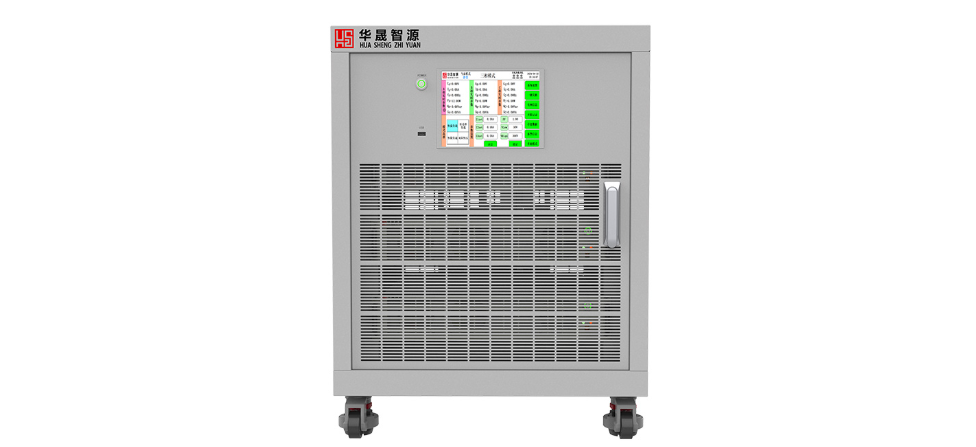

4.Simple Operation: Unified control interface (usually a touchscreen) allows simultaneous setting of both source and load parameters, simplifying operational procedures.
5.Data Management: Enables real‑time acquisition, display, recording, and analysis of all critical test data; test results can be generated as curve charts and reports.
6.Test Automation: Supports pre‑programmed test steps with one‑click execution of complex test sequences.

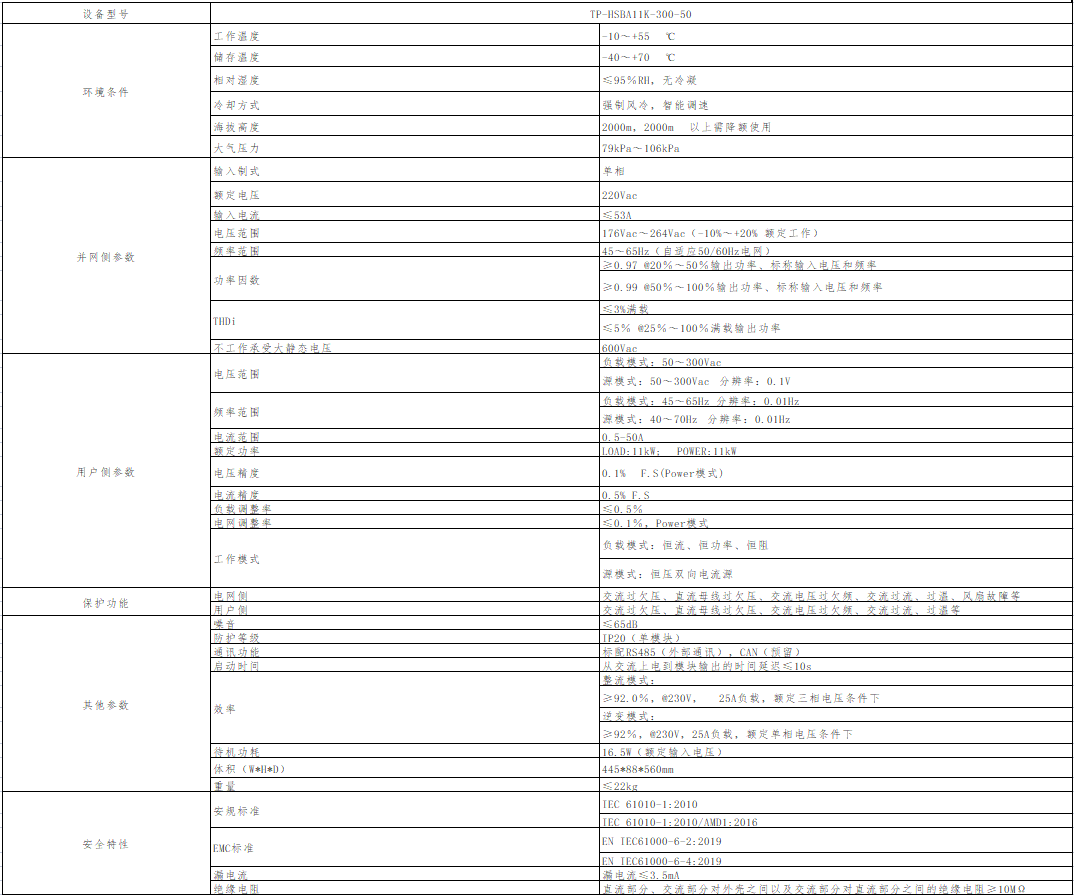

This series of cabinets is primarily designed for burn‑in testing, functional testing, and system validation of AC‑output products. It can also serve as a programmable AC source for power supply products.

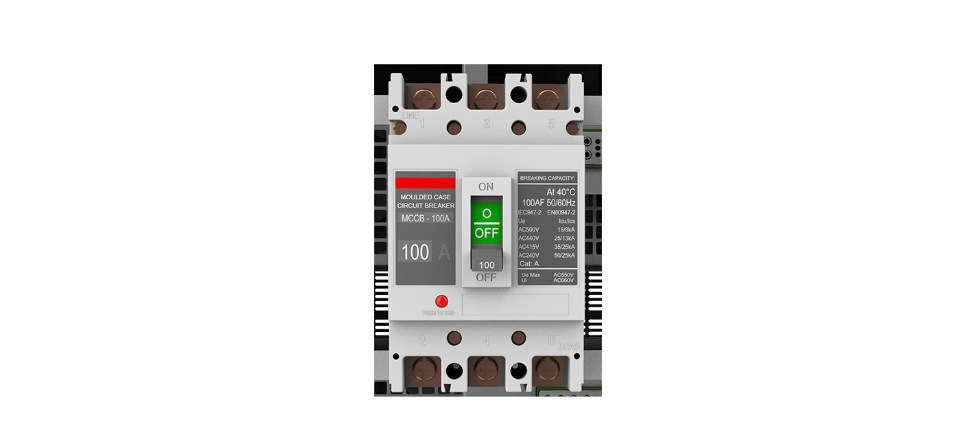

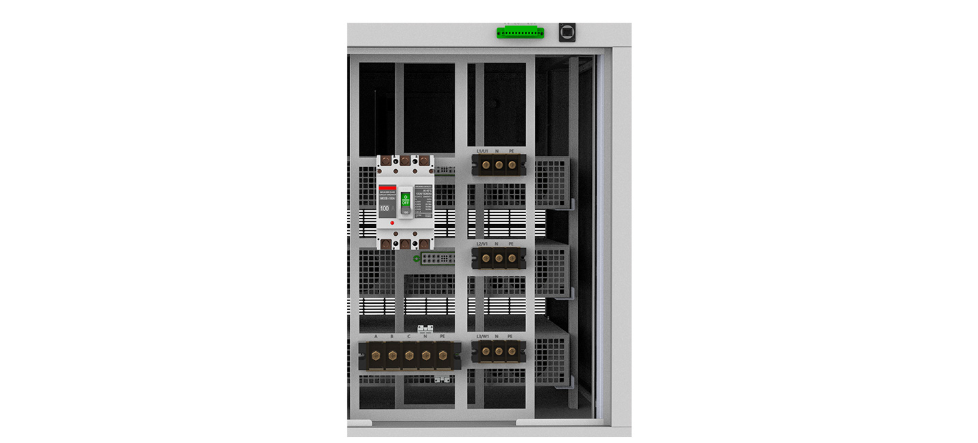

The system cabinet supports both single‑phase and three‑phase applications.
1.In Load Mode: The user‑side AC terminals can be connected in parallel, or can be individually connected to L1/U1, L1/V1, and L2/W1 respectively.
2.In Source Mode: The user‑side AC terminals are not connected in parallel; instead, they output three phases with a 120° phase shift, designated as L1/U1, L1/V1, and L2/W1.
The cabinet supports RS485 communication for convenient interfacing and control with third‑party equipment.
