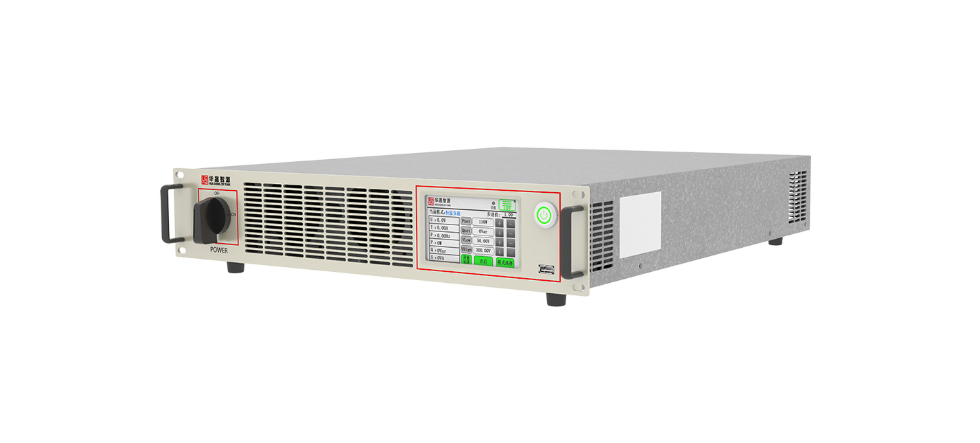

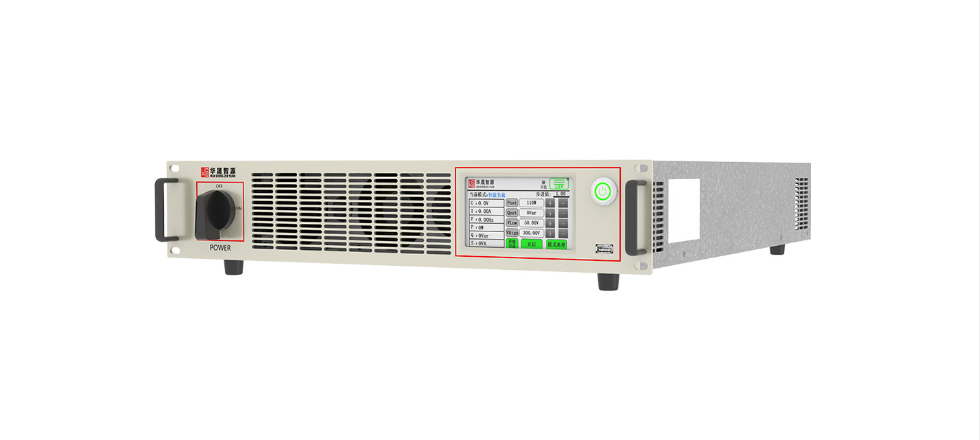

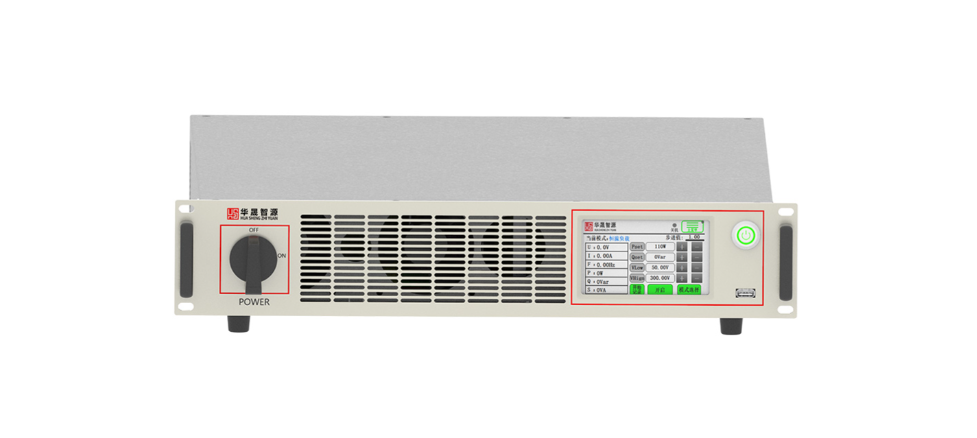

The TP‑HSBA11K‑300‑50 is an AC‑to‑AC bidirectional integrated source‑load power supply with constant‑current load and power supply modes, plus grid simulator functionality. It supports three‑phase and split‑phase expansion. Combining both AC source and AC load in one unit, it simulates programmable AC power for DUTs as a source, and absorbs energy as a load to test inverters, UPS, and generators under realistic conditions.
The AC integrated source‑load instrument features bidirectional energy flow with seamless source‑load switching and four‑quadrant operation, enabling precise simulation of resistive, capacitive, and inductive loads. Advanced energy regeneration feeds absorbed power back to the grid (>90% efficiency), significantly reducing energy costs and cooling demands. High precision, dynamic performance, and programmable sequencing support complex test automation.
Widely used in:
1.PV inverters – MPPT efficiency, grid adaptability (LVRT), power quality.
2.Energy storage & UPS – charge/discharge cycling, grid switching, battery simulation.
3.EV systems – OBC, V2G, and motor drive regenerative braking testing.
4.Appliances & industrial – global input simulation and grid disturbance immunity testing.
5.The essential tool for R&D and validation in power electronics and new energy applications.
