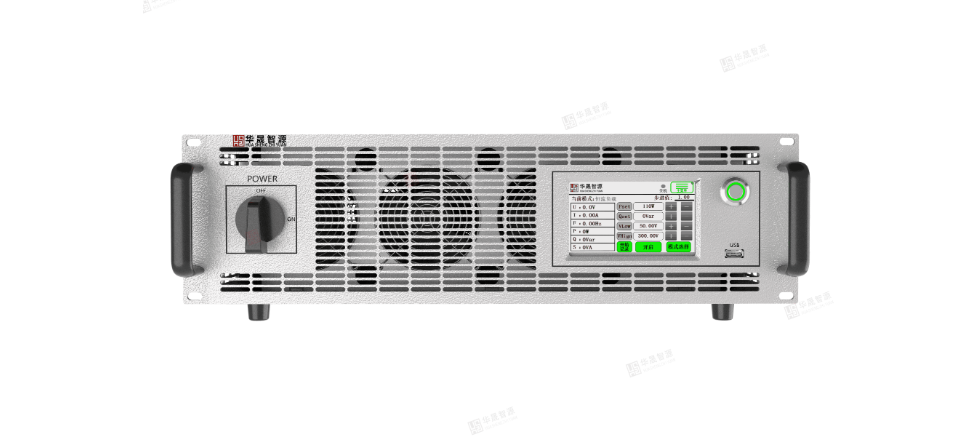

The 15kW/1000V/100A DC integrated source‑load instrument offers a balanced solution of flexibility, performance, and cost. Its wide voltage/current range and 15kW capacity cover most medium/small‑power testing needs. With energy feedback (up to 95% savings), it makes long‑term testing economical. Features include seamless source‑load switching, high precision, low ripple, and simulation functions for batteries, PV panels, and programmable test sequences – ideal for R&D verification of inverters, motor drives, BMS, and OBC.
The 15kW/1000V/100A configuration offers an ideal balance of power and range for diverse applications:
1.EV components – OBC, DC‑DC converters, and motor controllers (3.3–11kW)
2.Energy storage & renewables – residential/commercial PCS, PV micro‑inverters, and optimizers
3.General power electronics – industrial/telecom power modules, R&D for UPS, inverters
4.Aerospace – 270V avionics systems and wide‑voltage‑range power supplies
5.Its versatility makes it a cost‑effective, space‑saving choice for both R&D labs and production test floors.
