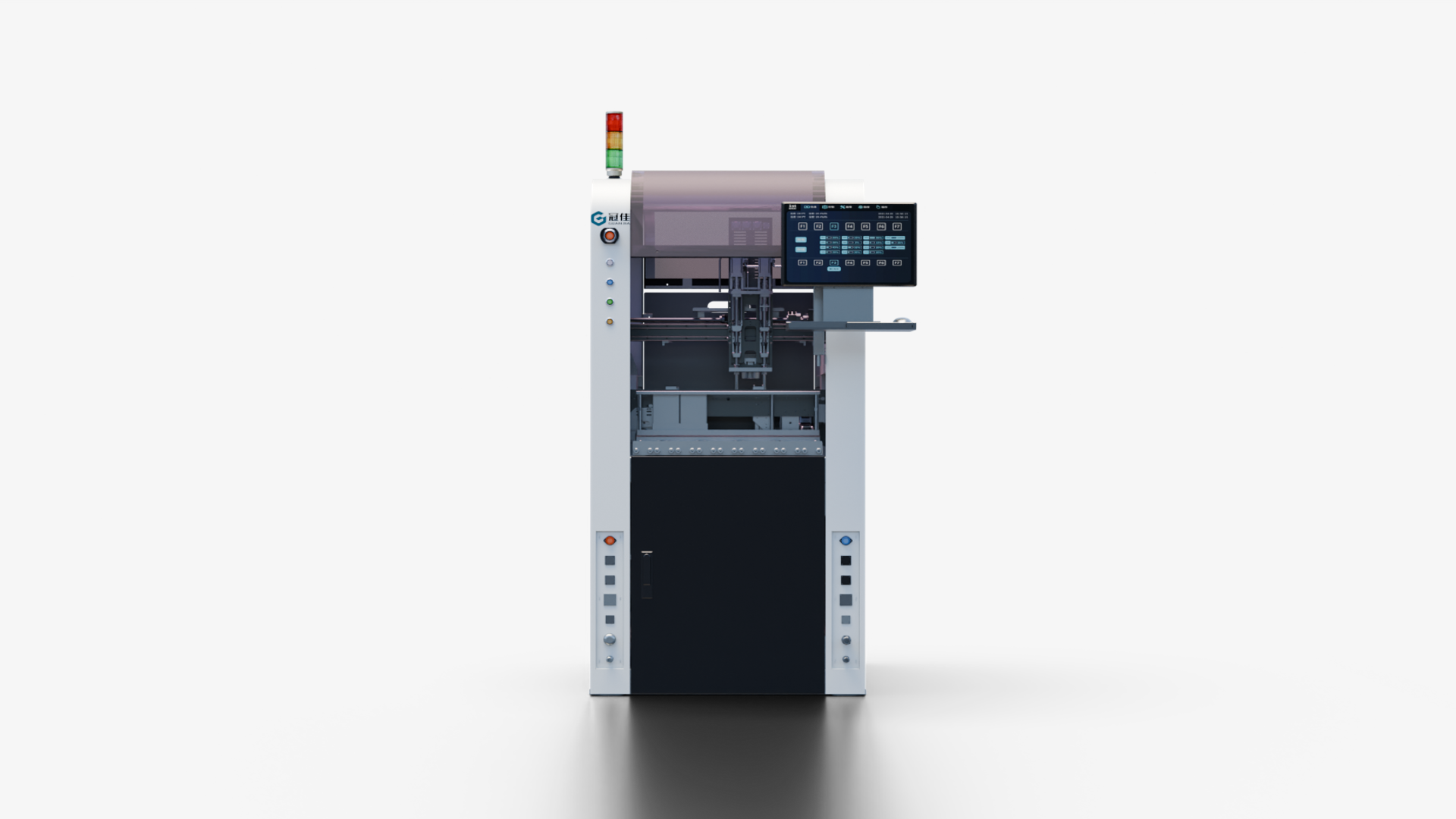

The precision inserter is an automated production device used in the electronics manufacturing field. It accurately inserts through‑hole electronic components into designated positions on a printed circuit board (PCB) with high precision and high efficiency.

The equipment typically integrates high‑speed motion control, precise mechanical positioning, and an advanced vision alignment system, achieving micron‑level insertion accuracy. It is compatible with various odd‑form components such as resistors, capacitors, and connectors, largely replacing traditional manual operations. It effectively increases production speed and product consistency while reducing insertion errors and production costs. It is a key piece of equipment for automation and intelligent upgrades in PCB assembly lines.

☆   High precision & reliability

      Equipped with a high‑resolution vision system and precision motion control mechanism, it achieves micron‑level positioning and insertion accuracy, ensuring each component is installed accurately and reliably, greatly ensuring product quality consistency and reliability.

☆  High efficiency & high stability

      As a fully automatic device, its operating speed far exceeds manual operation. It can work continuously for 24/7, significantly improving the production takt time and overall capacity of the PCBA section, while ensuring long‑term stable output quality.

☆  Intelligence & high flexibility

      Automatically generates test data tables, DSO waveforms, and relationship curves. The statistical reporting function can automatically generate various statistical analysis reports. Report data can be printed or saved.
